* 1) Built-In Biasing Resistor 2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit) . 3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also
DTC143TEB
1.41 MB
Npn 100ma 50v digital transistors.

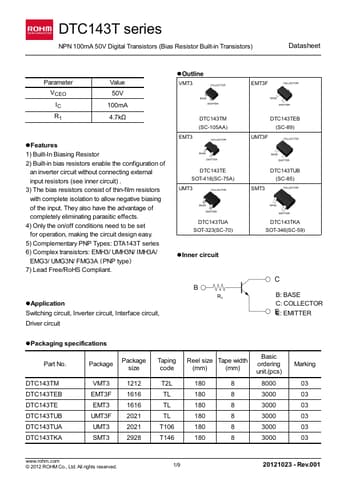

DTC143T series
NPN 100mA 50V Digital Transistors (Bias Resistor Built-in Transistors)
Datasheet
Parameter VCEO IC R1
Value 50V 100mA 4.7kΩ
lFe.
