ES1CFA, ES1AFA - Surface Mount Rectifiers

ES1CFA Description

Production specification Surface Mount Rectifiers ES1AFA *ES1JFA .

ES1CFA Features

* z Low cost z Low leakage z Low forward voltage drop Pb Lead-free z High current capability z Easily cleaned with Alcohol ,Isopropanol and similar solvents z The plastic material carries U/L recognition 94V-0 MECHANICAL DATA z Case: SMAFL molded plastic z Terminals: Solder able per MIL- STD-2

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ES1CFA, ES1AFA. Please refer to the document for exact specifications by model.

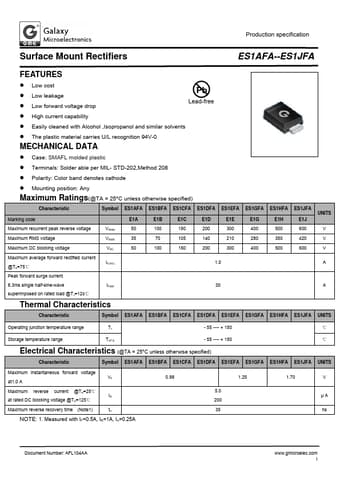

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ES1CFA, ES1AFA
Manufacturer
GME
File Size
145.00 KB
Datasheet
ES1AFA-GME.pdf
Description
Surface Mount Rectifiers
Note
This datasheet PDF includes multiple part numbers: ES1CFA, ES1AFA.
Please refer to the document for exact specifications by model.
