GBU8005

The GBU8005 is Silicon Bridge Rectifiers designed by GME.

Product Overview

GME

Part number	GBU8005
Manufacturer	GME
File Size	131.50 KB
Description	Silicon Bridge Rectifiers
Datasheet	GBU8005-GME.pdf

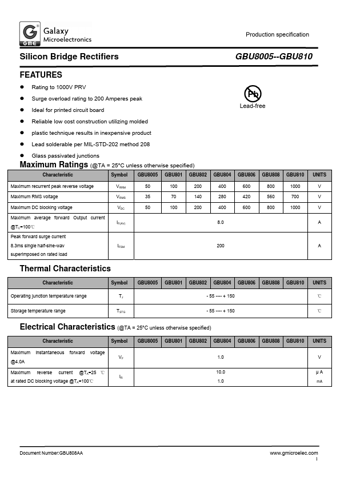

Additional preview pages of the GBU8005 datasheet.

z Rating to 1000V PRV z Surge overload rating to 200 Amperes peak z Ideal for printed circuit board Pb Lead-free z Reliable low cost construction utilizing molded z plastic technique results in inexpensive product z Lead solderable per MIL-STD-202 method 208 z Glass passivated junctions Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol GBU8005 GBU801 GBU802 GBU804 GBU806 GBU808 GBU810 Maximum recurrent peak reverse voltage VRRM 50 100 200 400 600 800 1000 M.
