GBU8G

The GBU8G is Silicon Bridge Rectifiers designed by GME.

Product Overview

GME

Part number	GBU8G, GBU8A
Manufacturer	GME
File Size	131.39 KB
Description	Silicon Bridge Rectifiers
Datasheet	GBU8A-GME.pdf
Note	This datasheet PDF includes multiple part numbers: GBU8G, GBU8A. Please refer to the document for exact specifications by model.

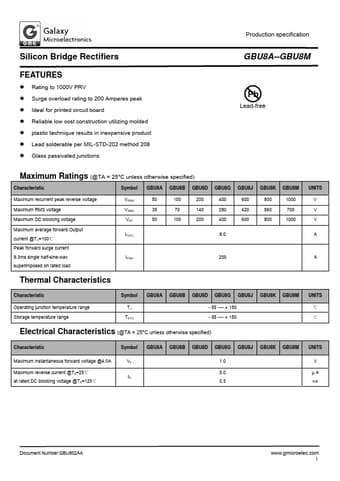

Additional preview pages of the GBU8G datasheet.

z Rating to 1000V PRV z Surge overload rating to 200 Amperes peak z Ideal for printed circuit board z Reliable low cost construction utilizing molded z plastic technique results in inexpensive product z Lead solderable per MIL-STD-202 method 208 z Glass passivated junctions GBU8A--GBU8M Pb Lead-free Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol GBU8A GBU8B GBU8D GBU8G GBU8J GBU8K GBU8M Maximum recurrent peak reverse voltage Maximum RMS voltage Maximum DC bloc.
