M8550 Silicon Epitaxial Planar Transistor

GME

M8550 Description

Silicon Epitaxial Planar Transistor .

M8550 Features

* High Collector Current. (IC= -800 mA).
* Complementary To M8050.

M8550 Applications

* High Collector Current. Production specification M8550 ORDERING INFORMATION Type No. Marking M8550 Y21 SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage -40 VCEO Collector-Emitter Voltage -25 VEBO

📥 Download Datasheet

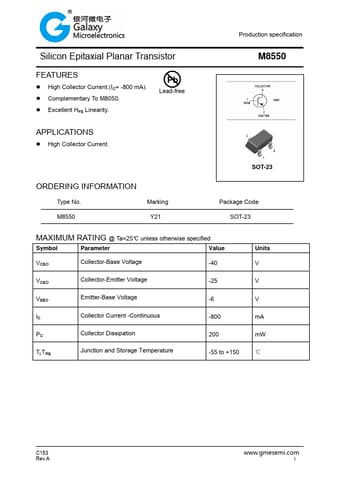

M8550 Datasheet Preview — Preview of M8550 PDF

Datasheet Details

Part number: M8550
Manufacturer: GME
File Size: 178.93 KB
Datasheet: M8550-GME.pdf
Description: Silicon Epitaxial Planar Transistor
