M85C DOUBLE-BALANCED MIXER

M85/M85C DOUBLE-BALANCED MIXER LO 2 TO 18 GHz RF 2 TO 18 GHz IF 0 TO 1000 MHz LO DRIVE +7 dBm (nominal) DC COUPLED I-PORT WIDE BANDWIDTH Specifications (Rev. Date: 1/02) Characteristics SSB Conversion Loss & SSB Noise Figure (max.) fR = 4 to 14 GHz, fL = 3 to 15 GHz, fI = 0 to 1 GHz fR = 22 to 3 GHz, fL = 2 to 3 GHz, fI = 0 to 1 GHz fR = 3 to 18 GHz, fL = 3 to 18 GHz, fI = 0 to 1 GHz fR = fL = fI = Isolation (min.) L to R fL = 2 to 18 GHz fL = fL = L to I fL =.

M85C Datasheet (135.38 KB)

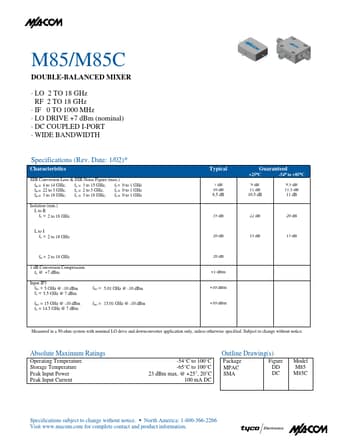

M85C Datasheet Preview — Preview of M85C PDF

Datasheet Details

Part number:

M85C

Manufacturer:

Tyco Electronics

File Size:

135.38 KB

Description:

Double-balanced mixer.
