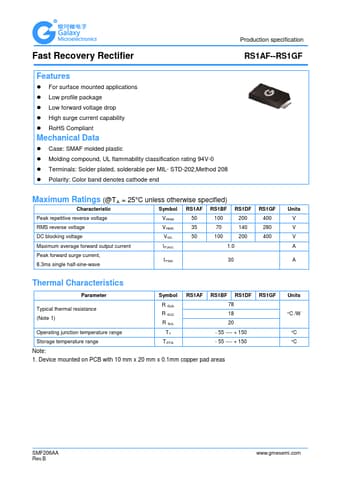

Fast Recovery Rectifier
Production specification
RS1AF--RS1GF
Features
For surface mounted applications Low profile package Low forward voltage drop High surge current capability RoHS Compliant
Mechanical Data
Case: SMAF molded plastic Molding compound, UL flammability classification rating 94V-0 Terminals: Solder plated, solderable per MIL- STD-202,Method 208 Polarity: Color band denotes cathode end
Maximum Ratings (@TA = 25°C unless otherwise specified)
Characteristic
Symbol RS1AF RS1BF RS1DF
Peak repetitive reverse voltage
VRRM 50 100 200
RMS reverse voltage
VRMS 35 70 140
DC blocking voltage
VDC 50 100 200
Maximum average forward output current
I F(AV)
1.0
Peak forward surge current, 8.
