RS1BFH - Fast Recovery diodes

This page provides the datasheet information for the RS1BFH, a member of the RS1AFH Fast Recovery diodes family.

Description

1 Cathode 2 Anode Weight：17.6mg，0.00062 o z Simplified outline SOD-123FH Absolute Maximum Ratings Ta = 25℃ Parameter Symbol RS1A RS1B RS1D RS1G RS1J FH FH FH FH F H RS1K RS1M FH FH Unit Repetitive Peak Reverse Voltage Surge Peak Reverse Voltage Maximum DC Blocking Voltage Averaged Forwa

Features

  • s.
  • Low leakage current.
  • Excellent stability.
  • Guaranteed avalanche energy absorption capability.
  • Glass passivated.
  • High maximum operating temperature 12 PIN.

📥 Download Datasheet

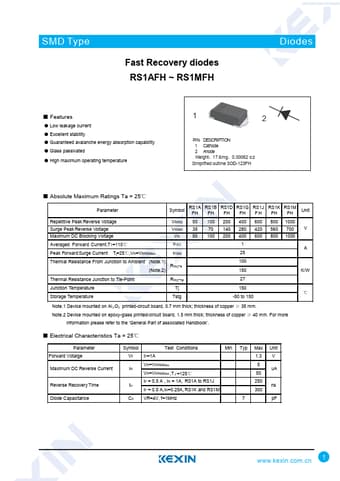

Datasheet preview – RS1BFH

Datasheet Details

Part number RS1BFH
Manufacturer Kexin
File Size 1.11 MB
Description Fast Recovery diodes
Datasheet download datasheet RS1BFH Datasheet
Additional preview pages of the RS1BFH datasheet.

📁 Similar Datasheet

  • RS1BF - Fast Recovery Rectifier (GME)
  • RS1BF - Surface Mount Fast Recover Rectifiers (SMD)
  • RS1BF - Surface Mount Fast Recovery Rectifiers (Jingdao Microelectronics)
  • RS1BF - SURFACE MOUNT FAST RECOVERY RECTIFIER (PAN JIT)
  • RS1BF - 1.0A Fast Recovery Rectifier (YENYO)
  • RS1BF - Surface Mount Fast Recovery Rectifiers (BLUE ROCKET ELECTRONICS)
  • RS1BF - Surface Mount Fast Recovery Rectifier (SEMTECH)
  • RS1BF - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • RS1BF - SURFACE MOUNT FAST RECOVERY RECTIFIER (E-DA SEMICONDUCTOR)
  • RS1BFA - Surface Mount Fast Recovery Rectifiers (Fairchild Semiconductor)
Other Datasheets by Kexin
  • RS1BL - Fast Recovery Diodes
  • RS1AFH - Fast Recovery diodes
  • RS1AL - Fast Recovery Diodes
  • RS1DFH - Fast Recovery diodes
  • RS1DL - Fast Recovery Diodes
  • RS1GFH - Fast Recovery diodes
  • RS1GL - Fast Recovery Diodes
  • RS1JFH - Fast Recovery diodes

Full PDF Text Transcription

Click to expand full text
SMD Type Fast Recovery diodes RS1AFH ~ RS1MFH Diodes ■ Features ● Low leakage current ● Excellent stability ● Guaranteed avalanche energy absorption capability ● Glass passivated ● High maximum operating temperature 12 PIN DESCRIPTION 1 Cathode 2 Anode Weight：17.6mg，0.00062 o z Simplified outline SOD-123FH ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol RS1A RS1B RS1D RS1G RS1J FH FH FH FH F H RS1K RS1M FH FH Unit Repetitive Peak Reverse Voltage Surge Peak Reverse Voltage Maximum DC Blocking Voltage Averaged Forward Current.TT=110℃ Peak Forward Surge Current Tj=25℃,VR=VRRMMax VRRM 50 100 200 400 600 800 1000 VRSM 35 70 140 280 420 560 700 V VR 50 100 200 400 600 800 1000 IFAV 1 A IFSM 25 Thermal Resistance From Junction to Ambient (Note.1) Rthj-a (Note.
