RS1AFH - Fast Recovery diodes

Product Overview

Kexin

Datasheet Details

Part number	RS1AFH
Manufacturer	Kexin
File Size	1.11 MB
Description	Fast Recovery diodes
Datasheet	RS1AFH Datasheet
Additional preview pages of the RS1AFH datasheet.

Product details

Description

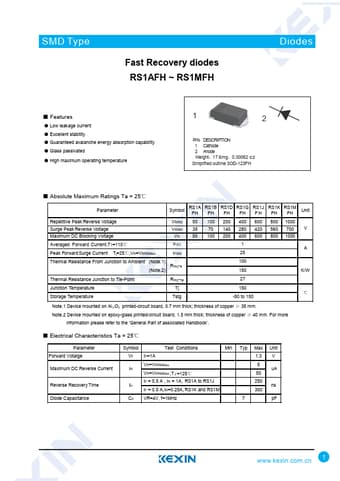

1 Cathode 2 Anode Weight：17.6mg，0.00062 o z Simplified outline SOD-123FH Absolute Maximum Ratings Ta = 25℃ Parameter Symbol RS1A RS1B RS1D RS1G RS1J FH FH FH FH F H RS1K RS1M FH FH Unit Repetitive Peak Reverse Voltage Surge Peak Reverse Voltage Maximum DC Blocking Voltage Averaged Forward Current.TT=110℃ Peak Forward Surge Current Tj=25℃,VR=VRRMMax VRRM 50 100 200 400 600 800 1000 VRSM 35 70 140 280 420 560 700 V VR 50 100 200 400 600 800 1000 IFAV 1 A IFSM 25 Thermal Resist

Features

s.
Low leakage current.
Excellent stability.
Guaranteed avalanche energy absorption capability.
Glass passivated.
High maximum operating temperature 12 PIN.
