RS1AWG - SURFACE MOUNT FAST RECOVERY RECTIFIER

RS1AWG Description

RS1AWG SERIES SURFACE MOUNT FAST RECOVERY RECTIFIER VOLTAGE 50 to 1000 Volts CURRENT 1 Amperes .

RS1AWG Applications

* in order to optimize board space
* Easy pick and place
* Fast recovery times for high efficiency
* Plastic package has Underwriters Laboratory Flammability Classification 94V-O
* Glass passivated junction
* Lead free in comply with EU RoHS 2011/65/EU directive

📥 Download Datasheet

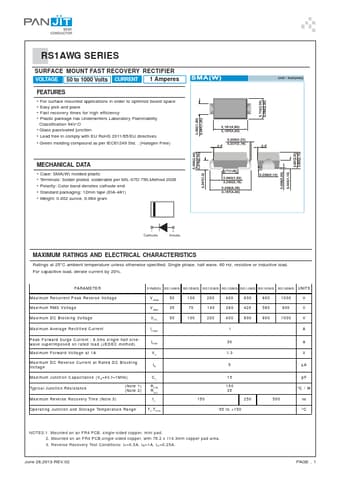

Preview of RS1AWG PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS1AWG
Manufacturer
Pan Jit International
File Size
140.31 KB
Datasheet
RS1AWG-PanJitInternational.pdf
Description
SURFACE MOUNT FAST RECOVERY RECTIFIER
