RS1004FL, RS1001FL Datasheet - Pan Jit International

RS1004FL SMALL SURFACE MOUNT FAST DIODES

RS1004FL Features

* For surface mounted applications

* Low profile package

* Ideal for automated placement

* Glass Passivated Chip Junction

* High temperature soldering : 260OC / 10 seconds at terminals

* In compliance with EU RoHS 2002/95/EC directives MECHANICAL DATA

RS1001FL-PanJitInternational.pdf

This datasheet PDF includes multiple part numbers: RS1004FL, RS1001FL. Please refer to the document for exact specifications by model.

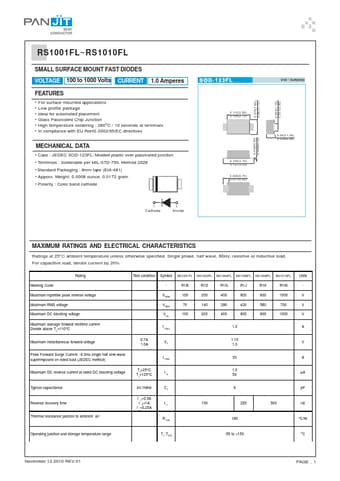

RS1004FL Datasheet Preview Page 2 RS1004FL Datasheet Preview Page 3

Datasheet Details

Part number:

RS1004FL, RS1001FL

Manufacturer:

Pan Jit International

File Size:

172.67 KB

Description:

Small surface mount fast diodes.

Note:

This datasheet PDF includes multiple part numbers: RS1004FL, RS1001FL.
Please refer to the document for exact specifications by model.
