RS1AG - (RS1AG - RS1MG) TECHNICAL SPECIFICATIONS OF SURFACE MOUNT FAST RECOVERY RECTIFIER

Datasheet Summary

Features

  • ldeal for surface mounted.

📥 Download Datasheet

Datasheet preview – RS1AG

Datasheet Details

Part number RS1AG
Manufacturer Dc Components
File Size 258.18 KB
Description (RS1AG - RS1MG) TECHNICAL SPECIFICATIONS OF SURFACE MOUNT FAST RECOVERY RECTIFIER
Datasheet download datasheet RS1AG Datasheet
Additional preview pages of the RS1AG datasheet.

📁 Similar Datasheet

  • RS1A - 1.0 Ampere Fast Recovery Rectifiers (Fairchild Semiconductor)
  • RS1A - SMA fast soft-recovery controlled avalanche rectifiers (NXP)
  • RS1A - Fast Recovery Rectifier (GME)
  • RS1A - 1.0A SURFACE MOUNT GLASS PASSIVATED FAST RECOVERY DIODE (WON-TOP)
  • RS1A - SURFACE MOUNT FAST RECOVERY RECTIFIER (Suntan)
  • RS1A - Silicon Diode (Sanken)
  • RS1A - MOUNT SUPER FAST RECTIFIER (Sangdest Microelectronics)
  • RS1A - SURFACE MOUNT FAST RECOVERY RECTIFIER (PAN JIT)
  • RS1A - SUPER FAST RECTIFIER (SMC Diode)
  • RS1A - 1.0A SURFACE MOUNT FAST RECOVERY RECTIFIER (DIODES)
Other Datasheets by Dc Components
  • RS101 - SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • RS102 - SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • RS103 - SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • RS104 - SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • RS105 - SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • RS106 - SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • RS107 - SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • RS1BG - (RS1AG - RS1MG) TECHNICAL SPECIFICATIONS OF SURFACE MOUNT FAST RECOVERY RECTIFIER

Full PDF Text Transcription

Click to expand full text

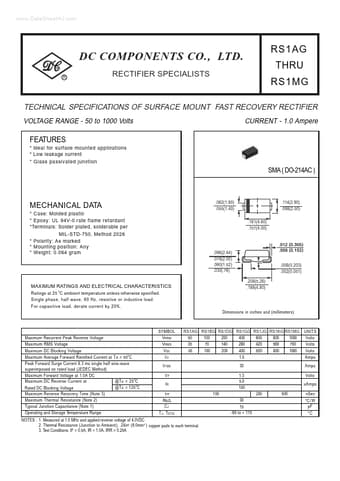

www.DataSheet4U.com DC COMPONENTS CO., LTD. R RS1AG THRU RS1MG RECTIFIER SPECIALISTS TECHNICAL SPECIFICATIONS OF SURFACE MOUNT FAST RECOVERY RECTIFIER VOLTAGE RANGE - 50 to 1000 Volts CURRENT - 1.0 Ampere FEATURES * ldeal for surface mounted applications * Low leakage current * Glass passivated junction SMA ( DO-214AC ) MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant *Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 * Polarity: As marked * Mounting position: Any * Weight: 0.064 gram .062(1.60) .055(1.40) .181(4.60) .157(4.00) .114(2.90) .098(2.50) .096(2.44) .078(2.00) .060(1.52) .030(.76) .208(5.28) .188(4.80) .008(0.203) .002(0.
