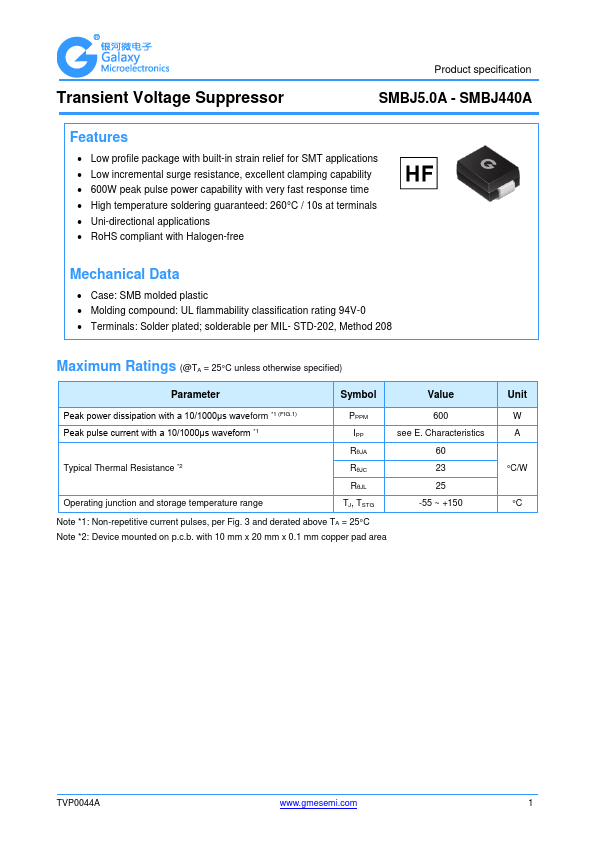

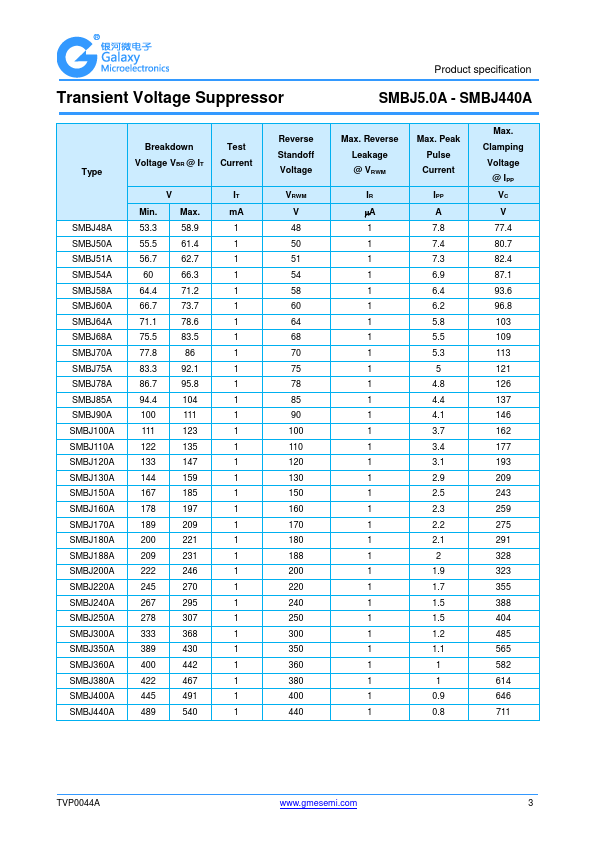

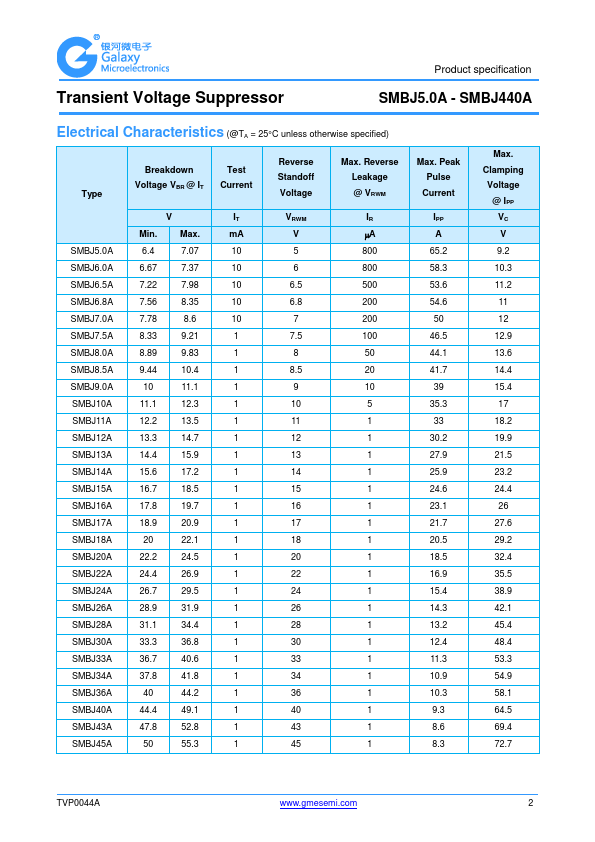

SMBJ180A, SMBJ5.0A Transient Voltage Suppressor

GME

Description

Transient Voltage Suppressor Product specification SMBJ5.0A - SMBJ440A .

📥 Download Datasheet

SMBJ180A Datasheet Preview — This datasheet PDF includes multiple part numbers: SMBJ180A, SMBJ5.0A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SMBJ180A, SMBJ5.0A
Manufacturer: GME
File Size: 371.15 KB
Datasheet: SMBJ5.0A-GME.pdf
Description: Transient Voltage Suppressor
Note: This datasheet PDF includes multiple part numbers: SMBJ180A, SMBJ5.0A.
Please refer to the document for exact specifications by model.

Applications

* Low incremental surge resistance, excellent clamping capability
* 600W peak pulse power capability with very fast response time
* High temperature soldering guaranteed: 260°C / 10s at terminals
* Uni-directional applications
* RoHS compliant with Halogen-free Mechanical Data
