SMBJ5.0A Transient Voltage Suppressor

GME

Description

Transient Voltage Suppressor Product specification SMBJ5.0A - SMBJ440A .

📥 Download Datasheet

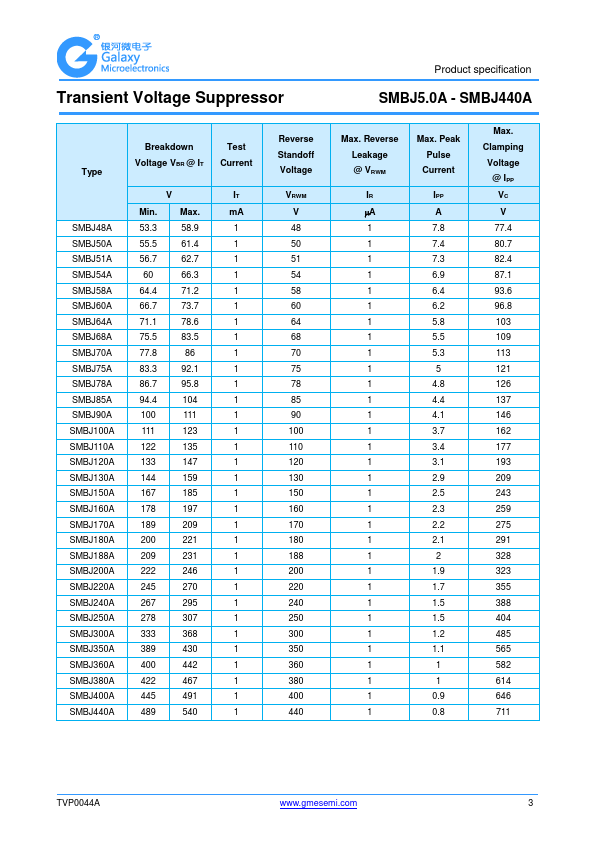

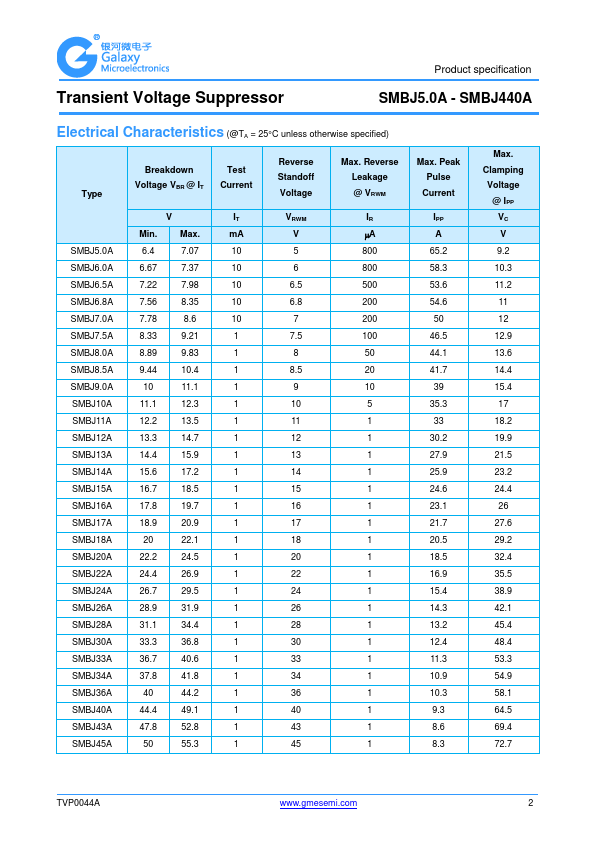

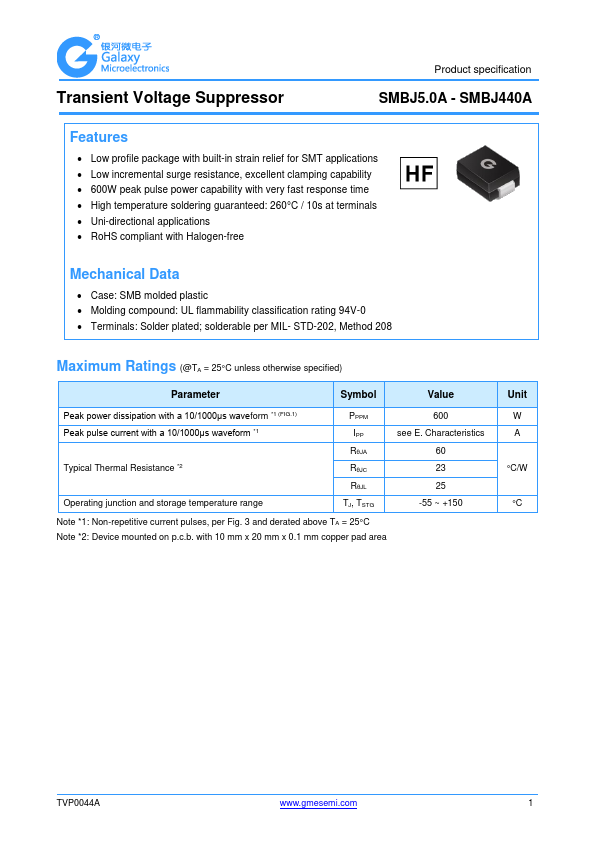

SMBJ5.0A Datasheet Preview — Preview of SMBJ5.0A PDF

Datasheet Specifications

Part number: SMBJ5.0A
Manufacturer: GME
File Size: 371.15 KB
Datasheet: SMBJ5.0A-GME.pdf
Description: Transient Voltage Suppressor

Applications

* Low incremental surge resistance, excellent clamping capability
* 600W peak pulse power capability with very fast response time
* High temperature soldering guaranteed: 260°C / 10s at terminals
* Uni-directional applications
* RoHS compliant with Halogen-free Mechanical Data

SMBJ5.0A Distributors
