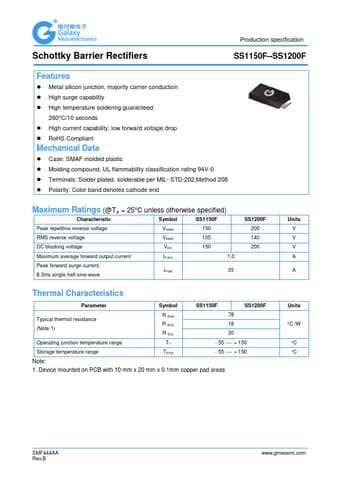

SS1200F, SS1150F - Schottky Barrier Rectifiers

GME

Datasheet Details

Part number	SS1200F, SS1150F
Manufacturer	GME
File Size	372.26 KB
Description	Schottky Barrier Rectifiers
Datasheet	SS1150F-GME.pdf
Note	This datasheet PDF includes multiple part numbers: SS1200F, SS1150F. Please refer to the document for exact specifications by model.

Metal silicon junction, majority carrier conduction.
High surge capability.
High temperature soldering guaranteed: 260°C/10 seconds.
High current capability, low forward voltage drop.
RoHS Compliant Mechanical Data.
Case: SMAF molded plastic.
Molding compound, UL flammability classification rating 94V-0.
Terminals: Solder plated, solderable per MIL- STD-202,Method 208.
Polarity: Color band denotes cathode end Maximum Ratings (@TA = 25°C unless other.
