SS120A, SS12A Surface Mount Schottky Rectifier

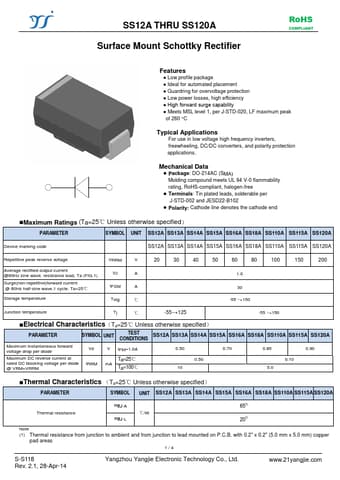

📥 Download Datasheet  Datasheet Preview Page 1

Description

SS12A THRU SS120A Surface Mount Schottky Rectifier RoHS COMPLIANT .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS120A, SS12A. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SS120A, SS12A
Manufacturer
Yangjie
File Size
468.42 KB
Datasheet
SS12A-Yangjie.pdf
Description
Surface Mount Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: SS120A, SS12A.
Please refer to the document for exact specifications by model.

Features

* Low profile package
* Ideal for automated placement
* Guardring for overvoltage protection
* Low power losses, high efficiency
* High forward surge capability

Applications

* For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. Mechanical Data
* Package: DO-214AC (S Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
* Terminals: Tin plated leads, solderable per J-ST
