SS22F - Schottky Barrier Rectifiers

GME

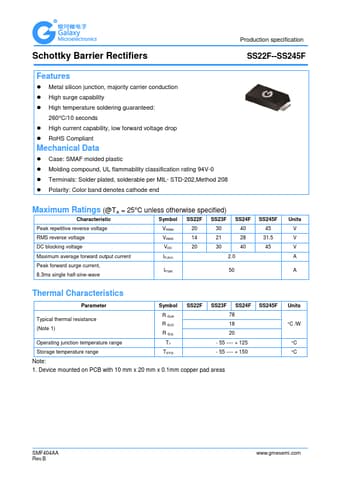

The SS22F by GME is a Schottky Barrier Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	SS22F
Manufacturer	GME
File Size	434.72 KB
Description	Schottky Barrier Rectifiers
Datasheet	SS22F-GME.pdf
Additional preview pages of the SS22F datasheet.

Metal silicon junction, majority carrier conduction.
High surge capability.
High temperature soldering guaranteed: 260°C/10 seconds.
High current capability, low forward voltage drop.
RoHS Compliant Mechanical Data.
Case: SMAF molded plastic.
Molding compound, UL flammability classification rating 94V-0.
Terminals: Solder plated, solderable per MIL- STD-202,Method 208.
Polarity: Color band denotes cathode end Maximum Ratings (@TA = 25°C unless other.
