SS2200F, SS2150F Datasheet - GME

SS2200F Schottky Barrier Rectifiers

SS2200F Features

* Metal silicon junction, majority carrier conduction

* High surge capability

* High temperature soldering guaranteed: 260°C/10 seconds

* High current capability, low forward voltage drop

* RoHS Compliant Mechanical Data

* Case: SMAF molded plastic

* Molding compound, UL

SS2150F-GME.pdf

This datasheet PDF includes multiple part numbers: SS2200F, SS2150F. Please refer to the document for exact specifications by model.

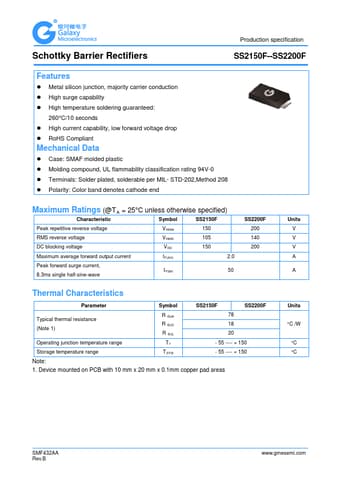

SS2200F Datasheet Preview Page 2 SS2200F Datasheet Preview Page 3

Datasheet Details

Part number:

SS2200F, SS2150F

Manufacturer:

GME

File Size:

372.43 KB

Description:

Schottky barrier rectifiers.

Note:

This datasheet PDF includes multiple part numbers: SS2200F, SS2150F.
Please refer to the document for exact specifications by model.
