SS59CF, SS58CF - SCHOTTKY BARRIER RECTIFIERS

GME

📥 Download Datasheet

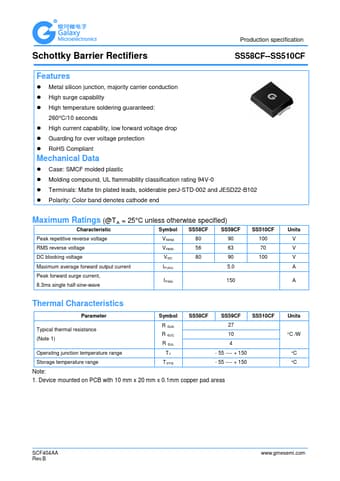

SS59CF Datasheet Preview — This datasheet PDF includes multiple part numbers: SS59CF, SS58CF. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SS59CF, SS58CF
Manufacturer: GME
File Size: 368.72 KB
Datasheet: SS58CF-GME.pdf
Description: SCHOTTKY BARRIER RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: SS59CF, SS58CF.
Please refer to the document for exact specifications by model.

SS59CF Product details

Features

Metal silicon junction, majority carrier conduction.
High surge capability.
High temperature soldering guaranteed: 260°C/10 seconds.
High current capability, low forward voltage drop.
Guarding for over voltage protection.
RoHS Compliant Mechanical Data.
Case: SMCF molded plastic.
Molding compound, UL flammability classification rating 94V-0.
Terminals: Matte tin plated leads, solderable perJ-STD-002 and JESD22-B102.
Polarity: Color band denotes.
