TSM5S10A - Transient Voltage Suppressor

GME

📥 Download Datasheet

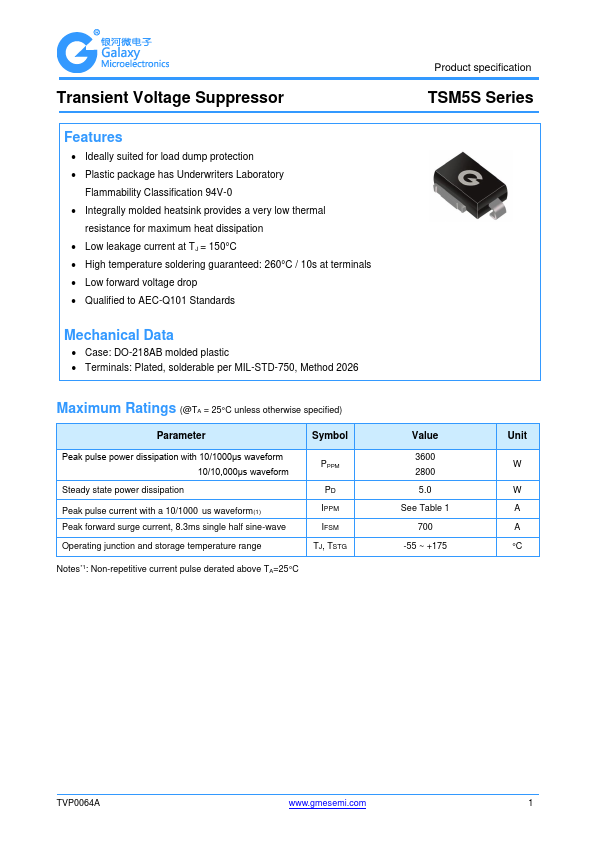

TSM5S10A Datasheet Preview — Preview of TSM5S10A PDF

datasheet Preview Page 2

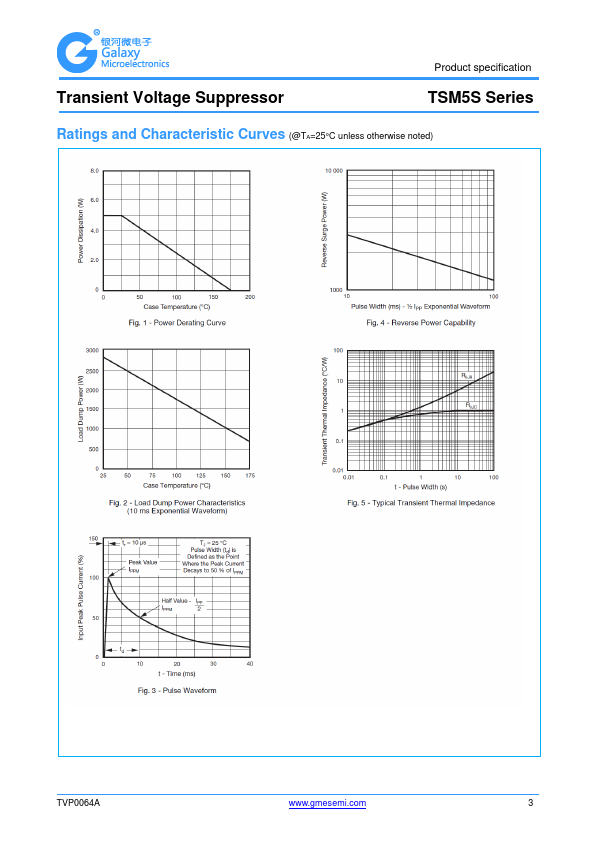

datasheet Preview Page 3

Datasheet Details

Part number: TSM5S10A
Manufacturer: GME
File Size: 425.43 KB
Datasheet: TSM5S10A-GME.pdf
Description: Transient Voltage Suppressor

TSM5S10A Product details

Features

Ideally suited for load dump protection.
Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Integrally molded heatsink provides a very low thermal resistance for maximum heat dissipation.
Low leakage current at TJ = 150°C.
High temperature soldering guaranteed: 260°C / 10s at terminals.
Low forward voltage drop.
Qualified to AEC-Q101 Standards Mechanical Data.
Case: DO-218AB molded plastic.
Terminals: Plated, solderable pe.
