G962

2A Low Dropout Regulator

G962 Features

* Adjustable Output from 1.2V to 4.8V Using External Resistors

* 1.5V, 1.8V and 2.5V options by Setting ADJ Pin Below 0.2V

* Over current and over temperature protection

* 500mV dropout @2A

* Enable pin

* 10µA quiescent current in shutdown

* Ou

G962 General Description

The G962 is a high performance positive voltage regulator designed for use in applications requiring very low dropout voltage at up to 2 Amps. Since it has superior dropout characteristics compared to regular LDOs, it can be used to supply 2.5V on motherboards or 1.5V, 1.8V on peripheral cards from .

G962 Datasheet (234.69 KB)

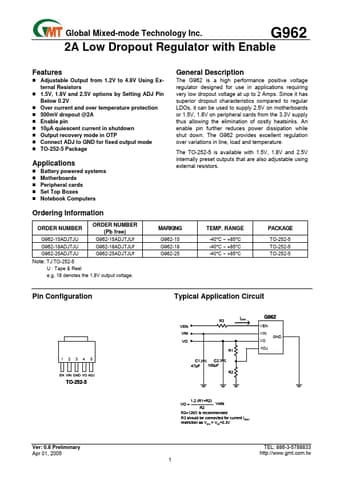

Preview of G962 PDF

Datasheet Details

Part number:

G962

Manufacturer:

GMT

File Size:

234.69 KB

Description:

2a low dropout regulator.
