G961

1A Low Dropout Regulator

G961 Features

* Adjustable Output from 1.2V to 4.8V Using External Resistors

* 1.5V, 1.8V and 2.5V Options by Setting ADJ Pin Below 0.2V

* Over current and over temperature protection

* 400mV dropout @1A

* Enable pin

* 10µA quiescent current in shutdown

* SO

G961 General Description

The G961 is a high performance positive voltage regulator designed for use in applications requiring very low dropout voltage at up to 1 Amps. Since it has superior dropout characteristics compared to regular LDOs, it can be used to supply 2.5V on motherboards or 1.5V, 1.8V on peripheral cards from .

G961 Datasheet (66.48 KB)

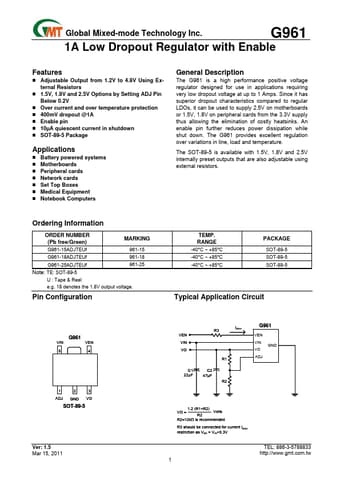

Preview of G961 PDF

Datasheet Details

Part number:

G961

Manufacturer:

Global Mixed-mode Technology

File Size:

66.48 KB

Description:

1a low dropout regulator.
