SB160, SB160_GOOD Datasheet - GOOD-ARK Electronics

SB160, SB160_GOOD, SCHOTTKY BARRIER RECTIFIER

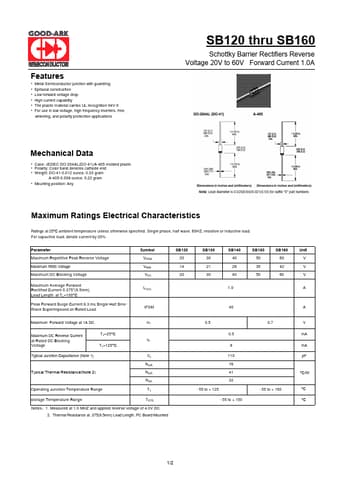

datasheet Preview Page 1 from Datasheet4u.com

SB160_GOOD-ARKElectronics.pdf

SB160 Datasheet Preview — This datasheet PDF includes multiple part numbers: SB160, SB160_GOOD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SB160, SB160_GOOD

Manufacturer:

GOOD-ARK Electronics

File Size:

408.69 KB

Description:

SCHOTTKY BARRIER RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SB160, SB160_GOOD.
Please refer to the document for exact specifications by model.

Features

* Metal-Semiconductor junction with guardring
* Epitaxial construction
* Low forward voltage drop
* High current capability
* The plastic material carries UL recognition 94V-0
* For use in low voltage, high frequency inverters, free wheeling, and polar

Applications

* SB120 thru SB160 Schottky Barrier Rectifiers Reverse Voltage 20V to 60V Forward Current 1.0A Mechanical Data
* Case: JEDEC DO-204AL(DO-41)/A-405 molded plastic
* Polarity: Color band denotes cathode end
* Weight: DO-41-0.012 ounce, 0.33 gram A-405-0.008 ounce, 0.22 gram
