SB160A - Schottky Barrier Rectifier

Product Overview

Vishay Siliconix

📥 Download Datasheet

SB160A Schottky Barrier Rectifier by Vishay Siliconix - Datasheet Preview — Datasheet preview – SB160A

Datasheet Details

Part number	SB160A
Manufacturer	Vishay Siliconix
File Size	136.33 KB
Description	Schottky Barrier Rectifier
Datasheet	SB160A Datasheet
Note	This datasheet PDF includes multiple part numbers: SB160A, SB120A. Please refer to the document for exact specifications by model.

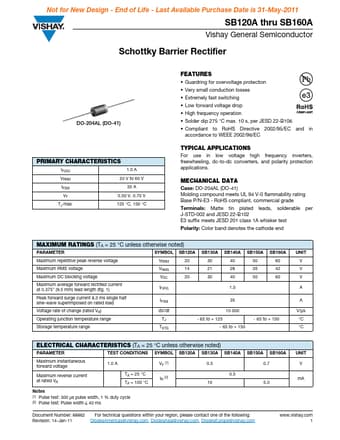

Additional preview pages of the SB160A datasheet.

Product details

Features

Guardring for overvoltage protection.
Very small conduction losses.
Extremely fast switching.
Low forward voltage drop.
High frequency operation.
Solder dip 275 °C max. 10 s, per JESD 22-B106.
Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC DO-204AL (DO-41).
