SB1H100 - High Voltage Schottky Rectifiers

Product Overview

Vishay Siliconix

📥 Download Datasheet

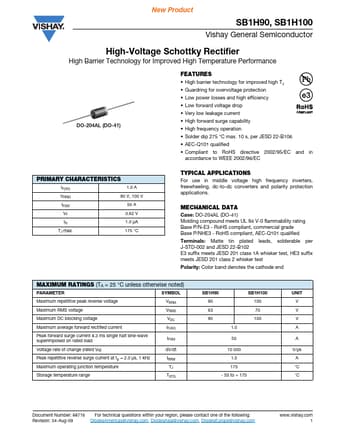

SB1H100 High Voltage Schottky Rectifiers by Vishay Siliconix - Datasheet Preview — Datasheet preview – SB1H100

Datasheet Details

Part number	SB1H100
Manufacturer	Vishay Siliconix
File Size	67.98 KB
Description	High Voltage Schottky Rectifiers
Datasheet	SB1H100 Datasheet
Additional preview pages of the SB1H100 datasheet.

Product details

Features

High barrier technology for improved high TJ.
Guardring for overvoltage protection.
Low power losses and high efficiency.
Low forward voltage drop.
Very low leakage current.
High forward surge capability.
High frequency operation.
Solder dip 275 °C max. 10 s, per JESD 22-B106.
AEC-Q101 qualified.
Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC.
