SF501

SUPER FAST RECOVERY RECTIFIER

SF501 Features

* Superfast recovery times Low forward voltage, high current capability Hermetically sealed Low leakage High surge capability Plastic package has Underwriters Laboratories Flammability classification 94V-0 utilizing Flame retardant epoxy molding compound Mechanical Data Case: Molded plastic, DO-201AD

SF501 Datasheet (174.94 KB)

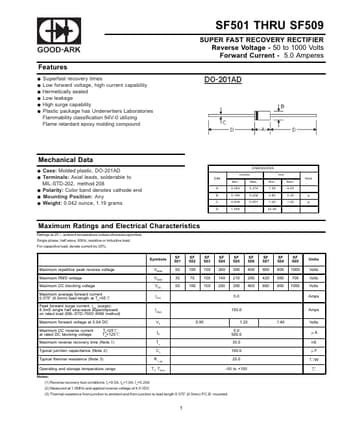

Preview of SF501 PDF

Datasheet Details

Part number:

SF501

Manufacturer:

GOOD-ARK Electronics

File Size:

174.94 KB

Description:

Super fast recovery rectifier.
