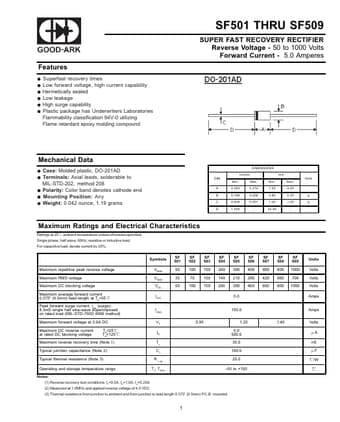

SF501 THRU SF509
SUPER FAST RECOVERY RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 5.0 Amperes
Features
Superfast recovery times Low forward voltage, high current capability Hermetically sealed Low leakage High surge capability Plastic package has Underwriters Laboratories Flammability classification 94V-0 utilizing Flame retardant epoxy molding compound
Mechanical Data
Case: Molded plastic, DO-201AD Terminals: Axial leads, solderable to MIL-STD-202, method 208 Polarity: Color band denotes cathode end Mounting Position: Any Weight: 0.042 ounce, 1.19 grams
DIM ENSIONS DIM A B C D inches Min. 0.283 0.189 0.048 1.000 Max. 0.374 0.208 0.051 Min. 7.20 4.80 1.20 25.40 mm Max. 9.50 5.30 1.
