ZPD10 Datasheet PDF - GOOD-ARK Electronics SILICON PLANAR ZENER DIODES Specs

ZPD10 - SILICON PLANAR ZENER DIODES

This page provides the datasheet information for the ZPD10, a member of the ZPD10_GOOD SILICON PLANAR ZENER DIODES family.

Datasheet Summary

Features

Silicon Planar Zener Diodes The Zener voltages are graded according to the international E 24 standard. Smaller voltage tolerances and higher Zener voltages on request. DIM.

Datasheet Details

Part number	ZPD10
Manufacturer	GOOD-ARK Electronics
File Size	155.34 KB
Description	SILICON PLANAR ZENER DIODES
Datasheet	ZPD10 Datasheet
Additional preview pages of the ZPD10 datasheet.

📁 Similar Datasheet

ZPD10 - Planar Zener Diodes (Diotec)

ZPD10 - SILICON PLANAR ZENER DIODE (Diodes Incorporated)

ZPD10 - ZENER DIODES (General Semiconductor)

ZPD10 - Silicon Epitaxial Planar Zener Diodes (JGD)

ZPD10 - Silicon Epitaxial Planar Zener Diodes (SEMTECH)

ZPD10 - ZENER DIODES (EIC)

ZPD10B - Silicon Epitaxial Planar Zener Diodes (SEMTECH)

ZPD10B - Silicon Epitaxial Planar Zener Diodes (JGD)

ZPD1 - SILICON PLANAR ZENER DIODE (Diodes Incorporated)

ZPD1 - ZENER DIODES (General Semiconductor)

Full PDF Text Transcription

Click to expand full text

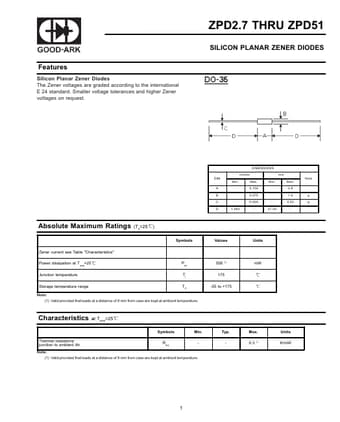

ZPD2.7 THRU ZPD51 SILICON PLANAR ZENER DIODES Features Silicon Planar Zener Diodes The Zener voltages are graded according to the international E 24 standard. Smaller voltage tolerances and higher Zener voltages on request. DIM ENSIONS DIM A B C D inches Min. 1.083 Max. 0.154 0.075 0.020 Min. 27.50 mm Max. 3.9 1.9 0.52 Note Absolute Maximum Ratings (Ta=25 ) Symbols Values Units Zener current see Table "Characteristics" Power dissipation at Tamb=25 Junction temperature Storage temperature range Ptot Tj TS 500 1) mW 175 -55 to +175 Note: (1) Valid provided that leads at a distance of 8 mm from case are kept at ambient temperature. Characteristics Thermal resistance junction to ambient Air at Tamb=25 Symbols Min. Typ. Max. Units RthA - - 0.
