GP10Q, GP10A-GOOD - Glass Passivated Junction Rectifiers

GOOD-ARK

Datasheet Details

Part number	GP10Q, GP10A-GOOD
Manufacturer	GOOD-ARK
File Size	822.31 KB
Description	Glass Passivated Junction Rectifiers
Datasheet	GP10A-GOOD-ARK.pdf
Note	This datasheet PDF includes multiple part numbers: GP10Q, GP10A-GOOD. Please refer to the document for exact specifications by model.

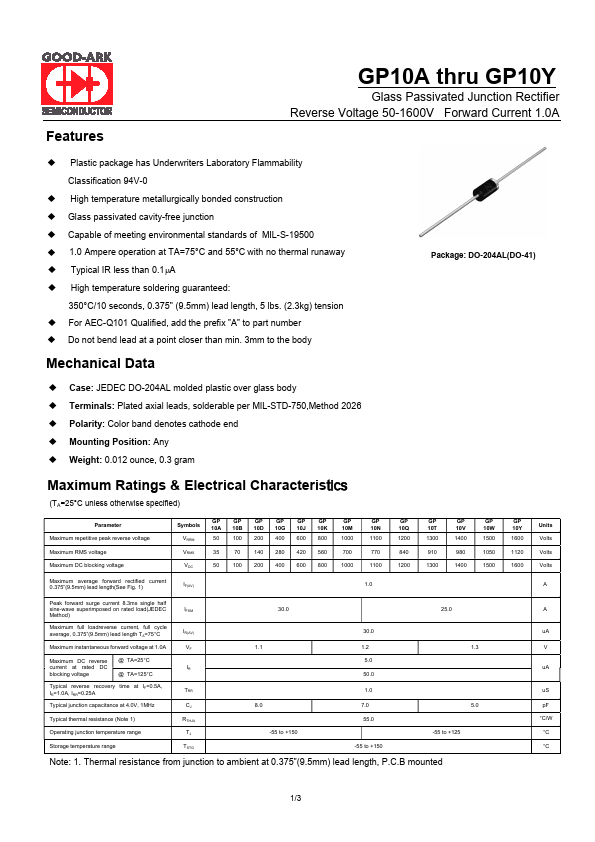

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
High temperature metallurgically bonded construction.
Glass passivated cavity-free junction.
Capable of meeting environmental standards of MIL-S-19500.
1.0 Ampere operation at TA=75°C and 55°C with no thermal runaway.
Typical IR less than 0.1A.
High temperature soldering guaranteed: 350°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension.
For AEC-Q101 Qualifi.
