GP15D, GP15A - Surface Mount Glass Passivated Rectifier

GOOD-ARK

Datasheet Details

Part number	GP15D, GP15A
Manufacturer	GOOD-ARK
File Size	597.99 KB
Description	Surface Mount Glass Passivated Rectifier
Datasheet	GP15A-GOODARK.pdf
Note	This datasheet PDF includes multiple part numbers: GP15D, GP15A. Please refer to the document for exact specifications by model.

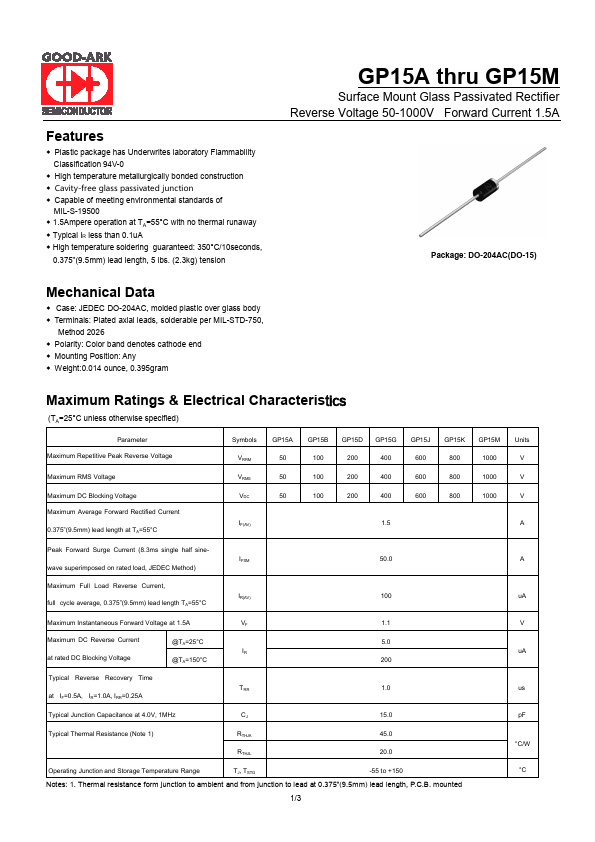

Plastic package has Underwrites laboratory Flammability Classification 94V-0.
High temperature metallurgically bonded construction.
Cavity-free glass passivated junction.
Capable of meeting environmental standards of MIL-S-19500.
1.5Ampere operation at TA=55°C with no th ermal runaway.
Typical IR less than 0.1uA.
High temperature soldering guaranteed: 350°C/10seconds, 0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension GP15A thru GP15M Surface Mount Glass Passi.
