LZ1120, LZ1110-GOOD Surface Mount Zener Diodes

LZ1120 Description

L1N4738 thru LZ1200 Surface Mount Zener Diodes Vz Range: 8.2 to 200V Power Dissipation: 1W .

LZ1120 Features

* Toal power dissipation: max1.0W
* Low leakage current
* Moisture sensitivity: level 1, per J-STD-020
* Solder dip 260 °C, 10 s
* Low profile， typical thickness 1.0mm
* For use in stabilizing and clipping circuits with high power rating
* Zene

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LZ1120, LZ1110-GOOD. Please refer to the document for exact specifications by model.

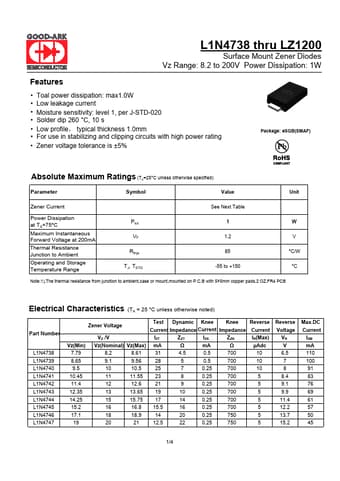

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LZ1120, LZ1110-GOOD
Manufacturer
GOOD-ARK
File Size
638.40 KB
Datasheet
LZ1110-GOOD-ARK.pdf
Description
Surface Mount Zener Diodes
Note
This datasheet PDF includes multiple part numbers: LZ1120, LZ1110-GOOD.
Please refer to the document for exact specifications by model.
