MMBT3906 - PNP Transistor

Product Overview

GOOD-ARK

Part number	MMBT3906
Manufacturer	GOOD-ARK
File Size	1.07 MB
Description	PNP Transistor
Datasheet	MMBT3906 Datasheet
Note	This datasheet PDF includes multiple part numbers: MMBT3906, MMBT3906-GOOD. Please refer to the document for exact specifications by model.

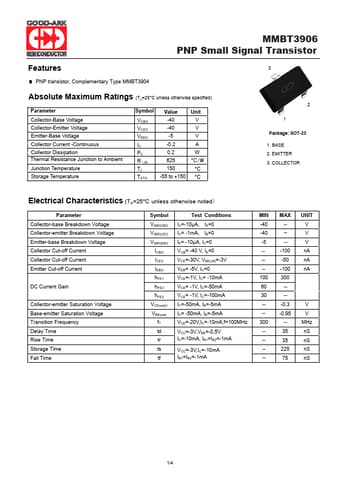

Additional preview pages of the MMBT3906 datasheet.

PNP transistor, Complementary Type MMBT3904 Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Dissipation Thermal Resistance Junction to Ambient Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC PC RθJA TJ TSTG Value -40 -40 -5 -0.2 0.2 625 150 -55 to +150 Unit V V V A W °C/W °C °C 3 2 1 Package: SOT-23 1. BASE 2.
