MMBT3906-Q - 40V 200mA PNP switching transistor

MMBT3906-Q Description

MMBT3906-Q 40 V, 200 mA PNP switching transistor 10 April 2025 Product data sheet 1.General .
PNP switching transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package.

MMBT3906-Q Features

* Collector current capability IC = -200 mA
* Collector-emitter voltage VCEO = -40 V

MMBT3906-Q Applications

* 3. Applications
* General switching and amplification 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditions open base VCE = -1 V; IC = -10 mA; Tamb = 25 °C Min Typ Max Unit - -

📥 Download Datasheet

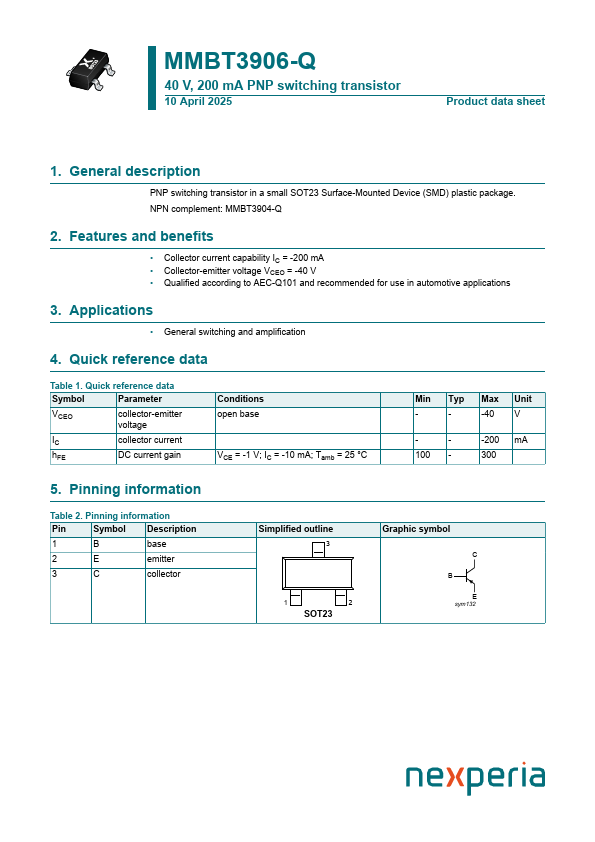

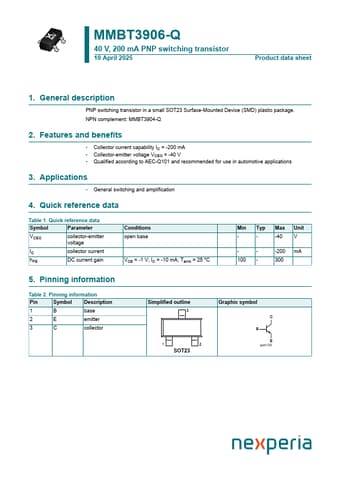

Preview of MMBT3906-Q PDF

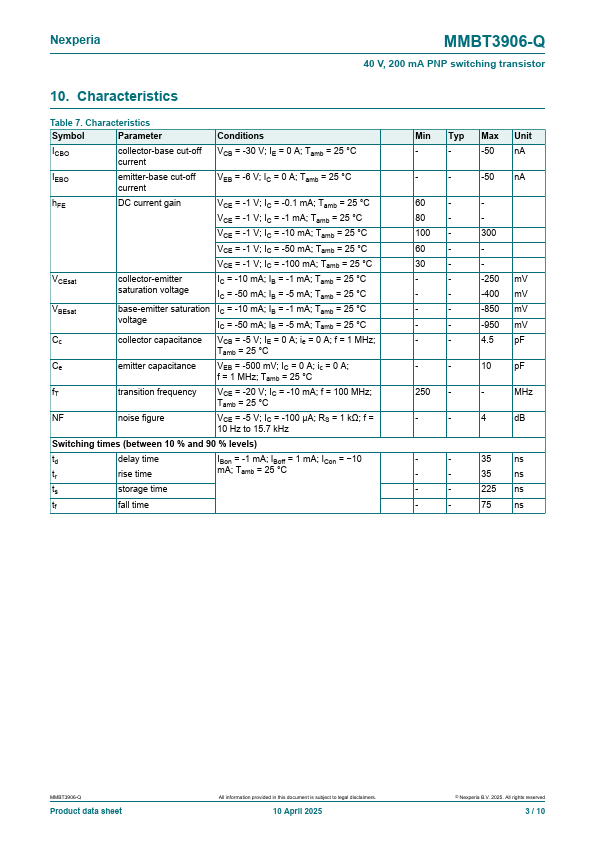

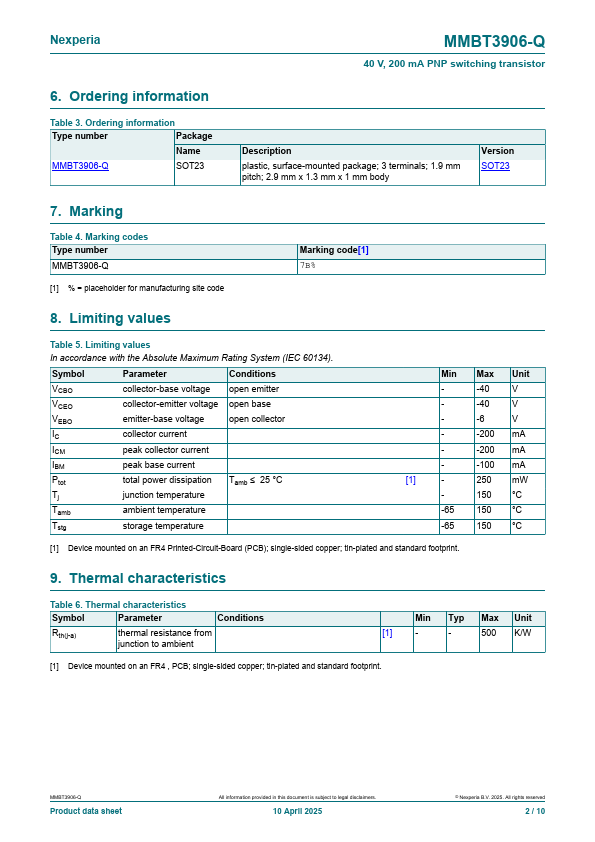

datasheet Preview Page 2 datasheet Preview Page 3
