MMBT3904 - 40V 200mA NPN switching transistor

Product Overview

nexperia

📥 Download Datasheet

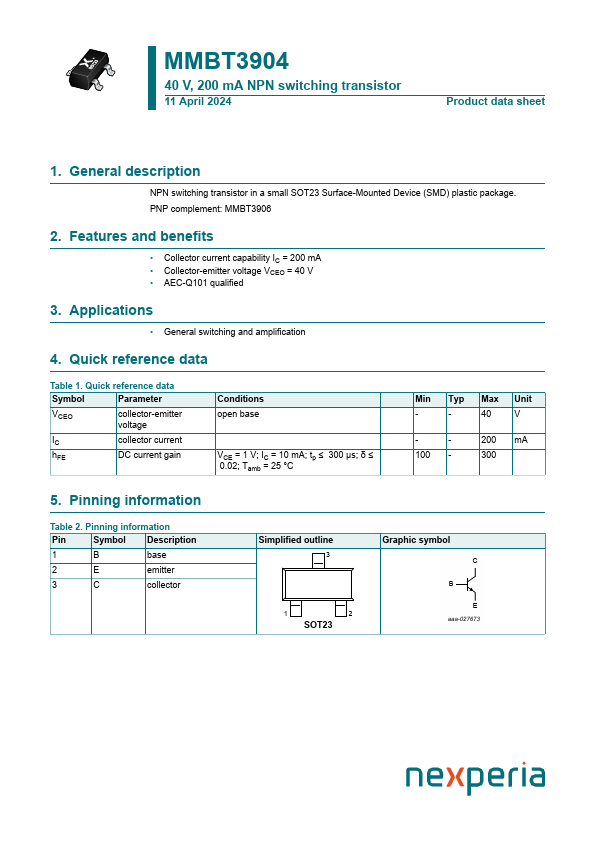

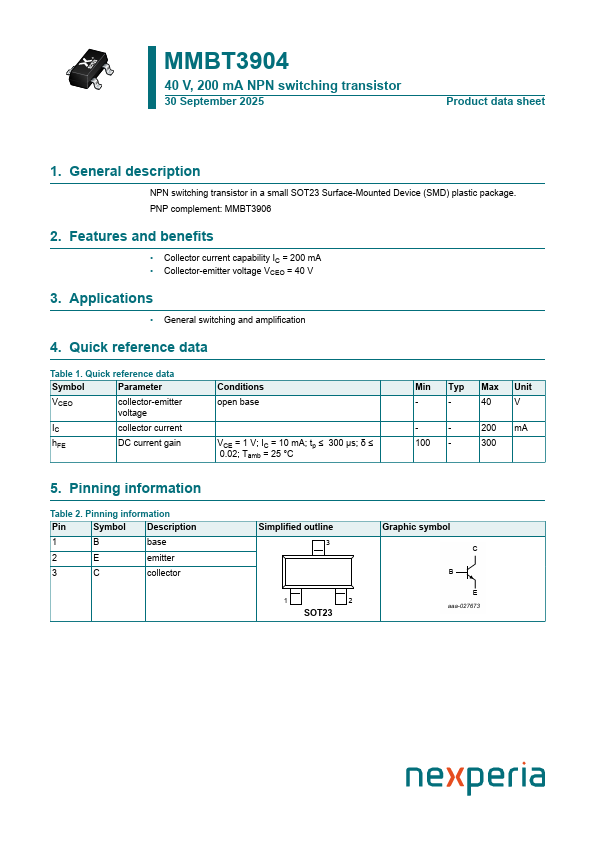

MMBT3904 40V 200mA NPN switching transistor by nexperia - Datasheet Preview — Datasheet preview – MMBT3904

Datasheet Details

Part number	MMBT3904
Manufacturer	nexperia
File Size	205.97 KB
Description	40V 200mA NPN switching transistor
Datasheet	MMBT3904 Datasheet

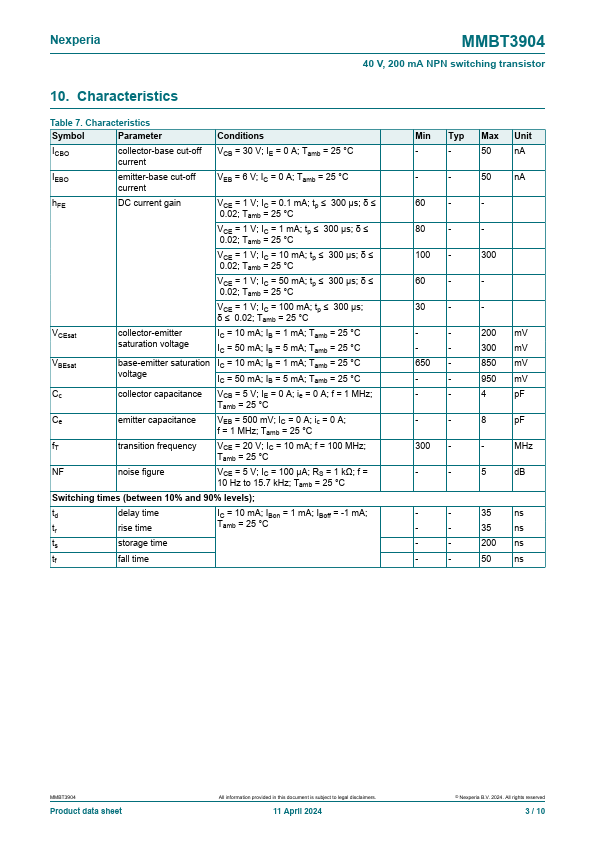

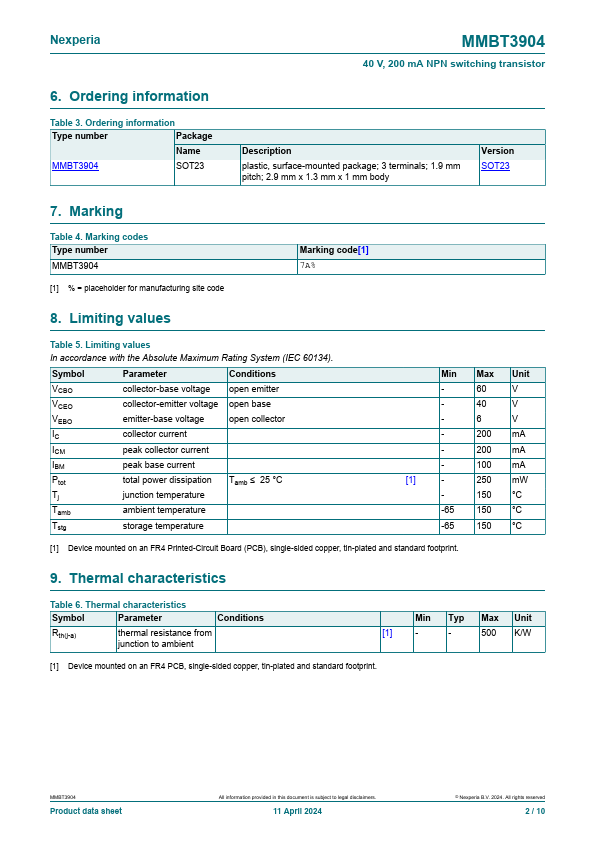

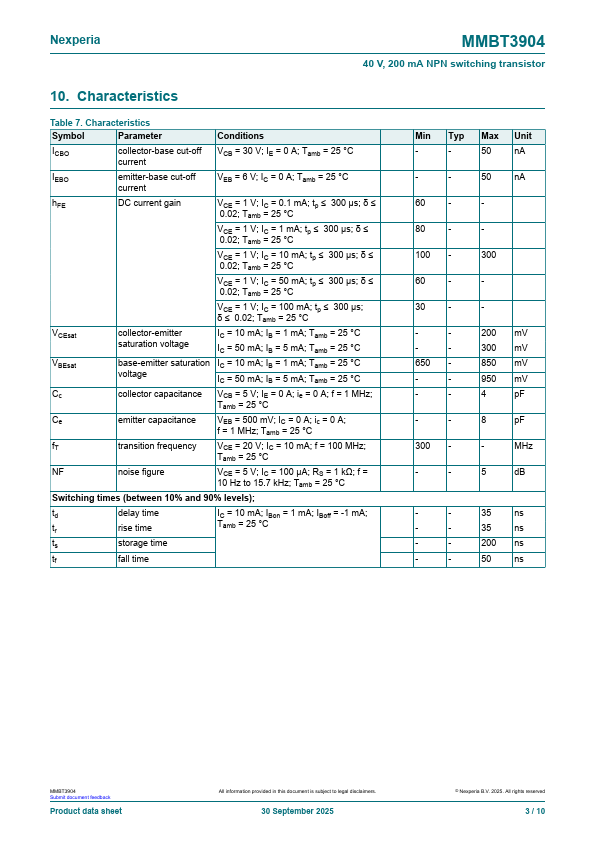

Additional preview pages of the MMBT3904 datasheet.

Product details

Description

NPN switching transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package.

Features

Collector current capability IC = 200 mA.
Collector-emitter voltage VCEO = 40 V 3.
