MMBZ10VAL, MMBZ5V6AL Datasheet - nexperia

MMBZ10VAL ESD protection diode

Unidirectional double ElectroStatic Discharge (ESD) protection diodes in a common anode configuration, encapsulated in a SOT23 (TO-236AB) small Surface-Mounted Device (SMD) plastic package. The devices are designed for ESD and transient overvoltage protection of up to two signal lines. Table 1. Pro.

MMBZ10VAL Features

* Unidirectional ESD protection of

* ESD protection up to 30 kV (contact two lines discharge)

* Bidirectional ESD protection of one line

* IEC 61000-4-2; level 4 (ESD)

* Low diode capacitance: Cd ≤ 280 pF

* Rated peak pulse power: PPPM = 40 W

MMBZ5V6AL-nexperia.pdf

This datasheet PDF includes multiple part numbers: MMBZ10VAL, MMBZ5V6AL. Please refer to the document for exact specifications by model.

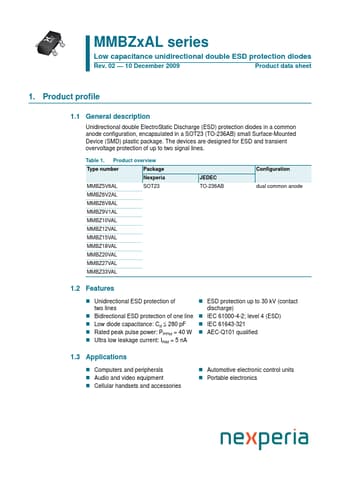

MMBZ10VAL Datasheet Preview Page 2 MMBZ10VAL Datasheet Preview Page 3
