MMBZ12VDL, MMBZ18VCL - Double ESD protection diodes

MMBZ12VDL Description

MMBZxVCL; MMBZxVDL series Double ESD protection diodes for transient overvoltage suppression Rev.01 * 3 September 2008 Product data sheet 1..
Unidirectional double ElectroStatic Discharge (ESD) protection diodes in a common cathode configuration, encapsulated in a SOT23 (TO-236AB) small Surfa.

MMBZ12VDL Features

* I Unidirectional ESD protection of two lines I Bidirectional ESD protection of one line I Low diode capacitance: Cd ≤ 140 pF I Rated peak pulse power: PPPM ≤ 40 W I Ultra low leakage current: IRM ≤ 5 nA I ESD protection up to 30 kV (contact discharge) I IEC 61000-4-2; level 4 (ESD) I IEC 61643-321 I

MMBZ12VDL Applications

* I Computers and peripherals I Audio and video equipment I Cellular handsets and accessories I Automotive electronic control units I Portable electronics Free Datasheet http://www. datasheet4u. com/ NXP Semiconductors MMBZxVCL; MMBZxVDL series Double ESD protection diodes for transient overvoltage s

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MMBZ12VDL, MMBZ18VCL. Please refer to the document for exact specifications by model.

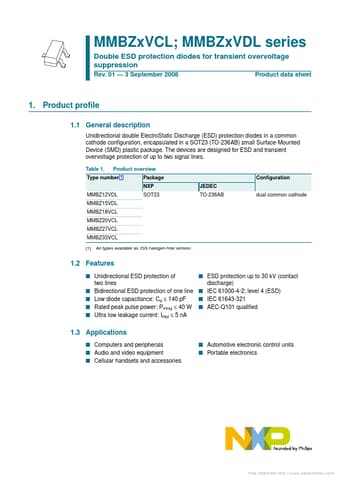

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMBZ12VDL, MMBZ18VCL
Manufacturer
NXP ↗
File Size
106.45 KB
Datasheet
MMBZ18VCL_NXP.pdf
Description
Double ESD protection diodes
Note
This datasheet PDF includes multiple part numbers: MMBZ12VDL, MMBZ18VCL.
Please refer to the document for exact specifications by model.
