MMBZ10VA - 300W Surface Mount Transient Voltage Suppressors

Product Overview

CITC

Part number	MMBZ10VA
Manufacturer	CITC
File Size	86.73 KB
Description	300W Surface Mount Transient Voltage Suppressors
Datasheet	MMBZ10VA Datasheet
Note	This datasheet PDF includes multiple part numbers: MMBZ10VA, MMBZ5V6A. Please refer to the document for exact specifications by model.

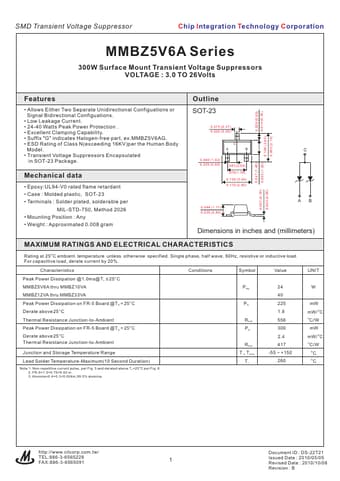

Additional preview pages of the MMBZ10VA datasheet.

Αllows Either Two Separate Unidirectional Configuations or Signal Bidirectional Configuations.
Low Leakage Current.
24-40 Watts Peak Power Protection.
Excellent Clamping Capability.
Suffix "G" indicates Halogen-free part, ex. MMBZ5V6AG.
ESD Rating of Class N(exceeding 16KV)per the Human Body Model.
Τransient Voltage Suppressors Encapsulated in SOT-23 Package. Mechanical data.
Epoxy:UL94-V0 rated flame retardant.
