MMBZ12VALT1G - Zener Diode

This page provides the datasheet information for the MMBZ12VALT1G, a member of the MMBZ5V6ALT1G Zener Diode family.

Datasheet Summary

Features

  • SOT.
  • 23 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration.
  • Standard Zener Breakdown Voltage Range.
  • 5.6 V to 47 V.
  • Peak Power.
  • 24 or 40 W @ 1.0 ms (Unidirectional), per Figure 6 Waveform.
  • ESD Rating:.
  • Class 3B (> 16 kV) per the Human Body Model.
  • Class C (> 400 V) per the Machine Model.
  • ESD Rating of IEC61000.
  • 4.
  • 2 Level 4, ±30 kV Contact Dis.

📥 Download Datasheet

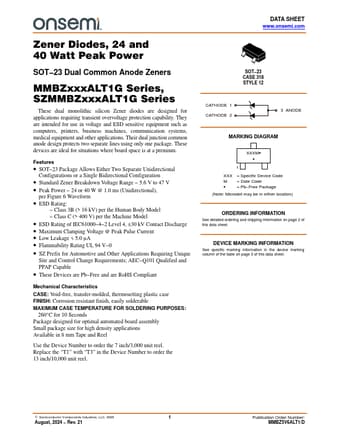

Datasheet preview – MMBZ12VALT1G

Datasheet Details

Part number MMBZ12VALT1G
Manufacturer ON Semiconductor
File Size 162.23 KB
Description Zener Diode
Datasheet download datasheet MMBZ12VALT1G Datasheet
Additional preview pages of the MMBZ12VALT1G datasheet.

📁 Similar Datasheet

  • MMBZ12VALT1 - 24 and 40 Watt Peak Power Zener Transient Voltage Suppressors (ON)
  • MMBZ12VAL - 24 and 40 Watt Peak Power Zener Transient Voltage Suppressors (ON)
  • MMBZ12VAL - ESD protection diode (nexperia)
  • MMBZ12VAL - Low capacitance unidirectional double ESD protection diodes (NXP)
  • MMBZ12VAL - ElectroStatic Discharge Protection Devices (SEMIWILL)
  • MMBZ12VA - 300W Surface Mount Transient Voltage Suppressors (CITC)
  • MMBZ12VDL - Double ESD protection diodes (NXP)
  • MMBZ10VA - 300W Surface Mount Transient Voltage Suppressors (CITC)
  • MMBZ10VAL - 24 and 40 Watt Peak Power Zener Transient Voltage Suppressors (ON)
  • MMBZ10VAL - ESD protection diode (nexperia)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
DATA SHEET www.onsemi.com Zener Diodes, 24 and 40 Watt Peak Power SOT−23 Dual Common Anode Zeners MMBZxxxALT1G Series, SZMMBZxxxALT1G Series These dual monolithic silicon Zener diodes are designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. Their dual junction common anode design protects two separate lines using only one package. These devices are ideal for situations where board space is at a premium. Features • SOT−23 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration • Standard Zener Breakdown Voltage Range − 5.
