SGP0230SD Datasheet, Rectifier, GOOD-ARK

SGP0230SD Features

  • Rectifier
  • Low forward voltage drop
  • Low leakage current
  • Moisture sensitivity: level 1, per J-STD-020
  • Solder dip 260 °C, 10 s
  • Low profile, typical

PDF File Details

Part number:

SGP0230SD

Manufacturer:

GOOD-ARK

File Size:

469.92kb

Download:

📄 Datasheet

Description:

Surface mount schottky rectifier.

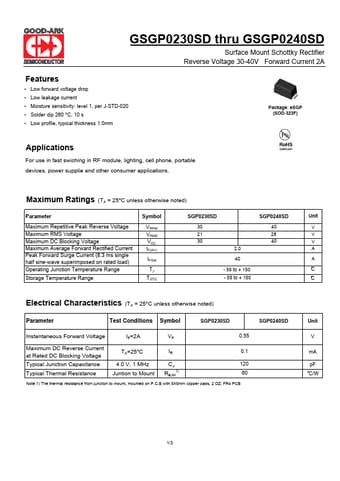

Datasheet Preview: SGP0230SD 📥 Download PDF (469.92kb)
Page 2 of SGP0230SD Page 3 of SGP0230SD

SGP0230SD Application

  • Applications For use in fast swiching in RF module, lighting, cell phone, portable devices, power supplie and other consumer applications. Maximum
