SGPD240S, SGPD220S-GOOD - Surface Mount Schottky Rectifier

GOOD-ARK

📥 Download Datasheet

SGPD240S Datasheet Preview — This datasheet PDF includes multiple part numbers: SGPD240S, SGPD220S-GOOD. Please refer to the document for exact specifications by model.

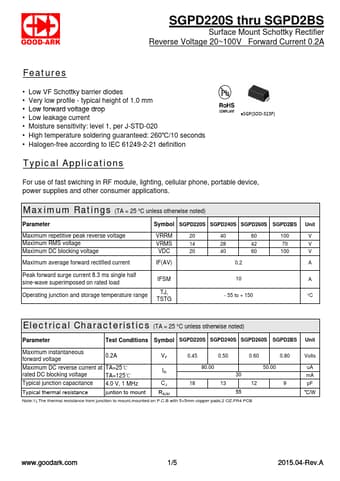

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SGPD240S, SGPD220S-GOOD
Manufacturer	GOOD-ARK
File Size	260.34 KB
Description	Surface Mount Schottky Rectifier
Datasheet	SGPD220S-GOOD-ARK.pdf
Note	This datasheet PDF includes multiple part numbers: SGPD240S, SGPD220S-GOOD. Please refer to the document for exact specifications by model.

SGPD240S Product details

Features

Low VF Schottky barrier diodes.
Very low profile - typical height of 1.0 mm.
Low forward voltage drop.
Low leakage current.
Moisture sensitivity: level 1, per J-STD-020.
High temperature soldering guaranteed: 260℃/10 seconds.
Halogen-free according to IEC 61249-2-21 definition eSGP(SOD‐323F) Typical.
