2N3904 NPN Transistor

GOODARK

2N3904 Description

2N3904 Applications

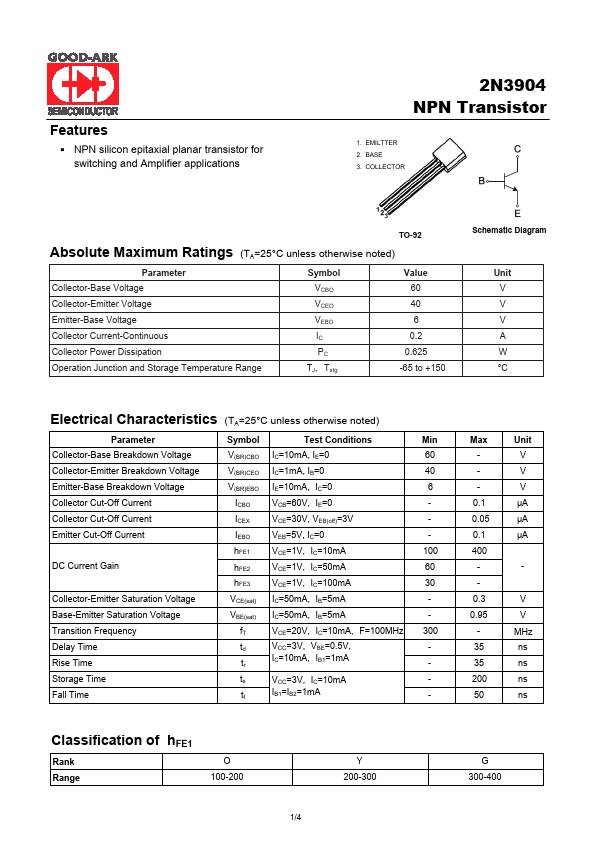

* 2N3904 NPN Transistor 1. EMILTTER 2. BASE 3. COLLECTOR TO-92 Absolute Maximum Ratings (TA=25°C unless otherwise noted) Parameter Symbol Value Collector-Base Voltage VCBO 60 Collector-Emitter Voltage VCEO 40 Emitter-Base Voltage VEBO 6 Collector Current-Continuous IC 0.2 Collector

📥 Download Datasheet

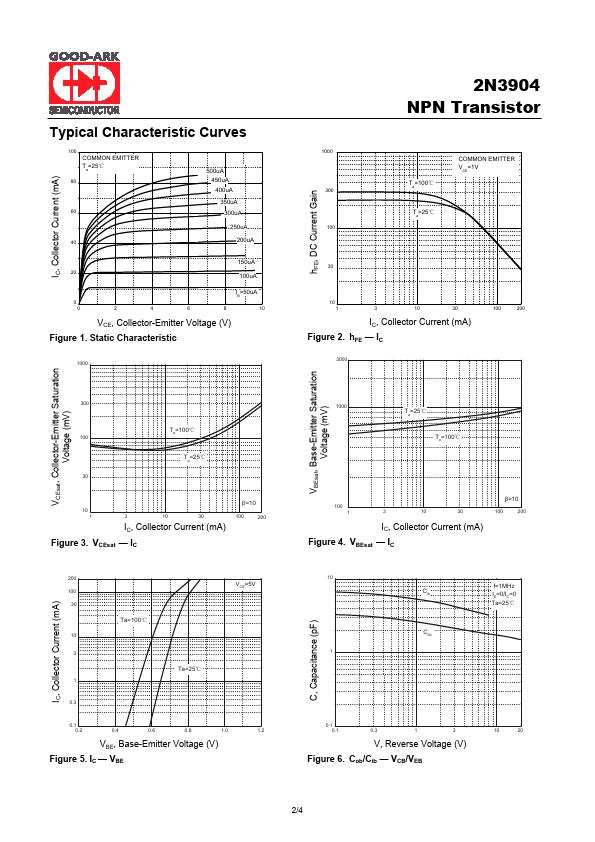

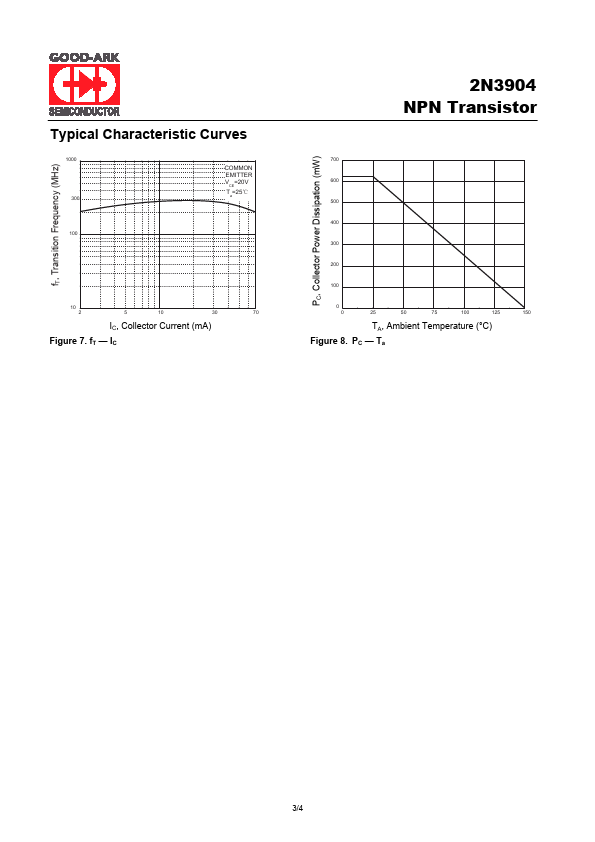

2N3904 Datasheet Preview — Preview of 2N3904 PDF

Datasheet Details

Part number: 2N3904
Manufacturer: GOODARK
File Size: 535.68 KB
Datasheet: 2N3904-GOODARK.pdf
Description: NPN Transistor
