LB10S Low Profile Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifier

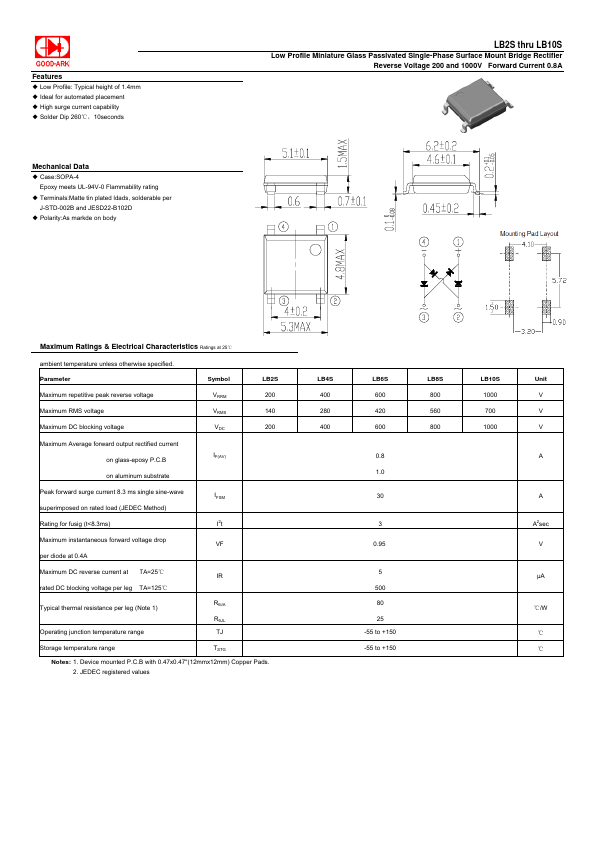

📥 Download Datasheet Datasheet Preview Page 1

Description

.

📥 Download Datasheet

Preview of LB10S PDF

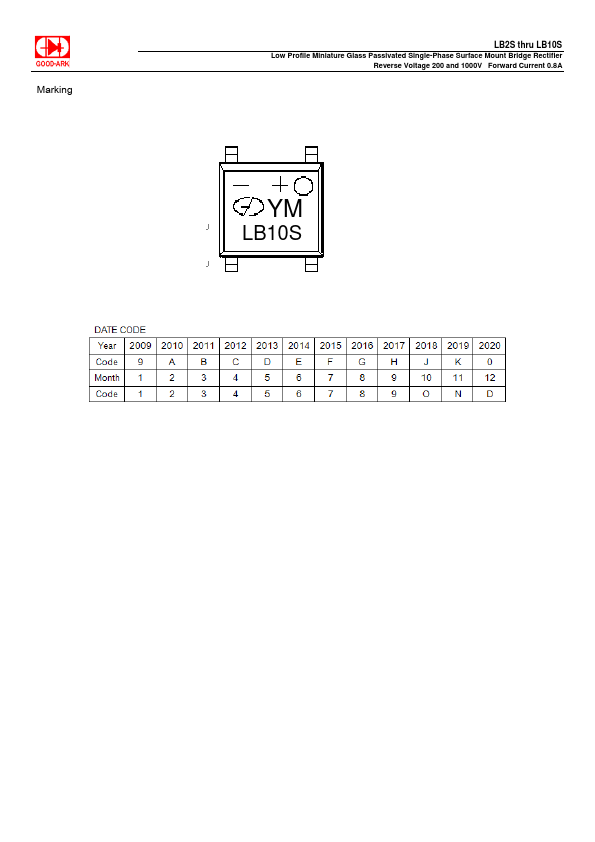

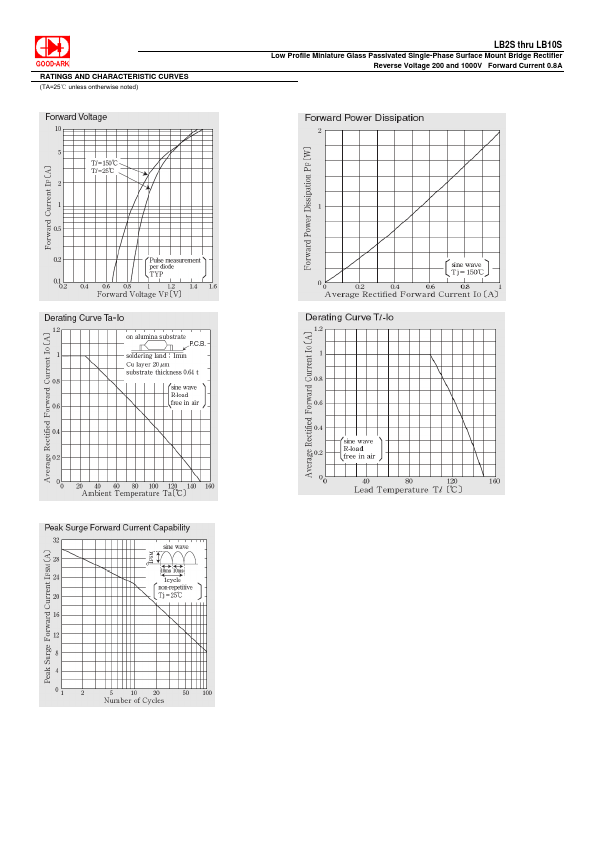

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LB10S
Manufacturer
GOODARK
File Size
191.09 KB
Datasheet
LB10S-GOODARK.pdf
Description
Low Profile Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifier

Features

* Low Profile: Typical height of 1.4mm
* Ideal for automated placement
* High surge current capability
* Solder Dip 260℃，10seconds Mechanical Data
* Case:SOPA-4 Epoxy meets UL-94V-0 Flammability rating
* Terminals:Matte tin plated ldads, solderable per J-STD-002B and JESD22-B
