HST-2027DSR

10/100 BASE-TX TRANSFORMER MODULES

HST-2027DSR Features

* Part NO Turn Ratio RX.TX

* Designed to meet IEEE 802.3 requirements.

* Non-PoE Product.

* Primary inductance(Lp)350uH min.@ 100KHz,0.1Vrms,DC 8mA .

* LL:0.5uH Max @100KHz, 0.1V

* Cww:75pF Max@100KHz, 0.1V

* Primary DCR:0.9ΩMax;Secondary DCR:1.2ΩMax.

* Storeage Temper

HST-2027DSR Datasheet (129.83 KB)

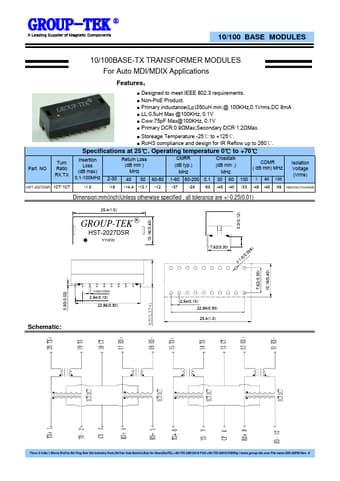

Preview of HST-2027DSR PDF

Datasheet Details

Part number:

HST-2027DSR

Manufacturer:

GROUP-TEK

File Size:

129.83 KB

Description:

10/100 base-tx transformer modules.
