HST-0041SAR - 10/100Base-T TRANSFORMER

Product Overview

Datasheet Details

Part number	HST-0041SAR
Manufacturer	ETC
File Size	100.56 KB
Description	10/100Base-T TRANSFORMER
Datasheet	HST-0041SAR Datasheet
Additional preview pages of the HST-0041SAR datasheet.

Product details

Description

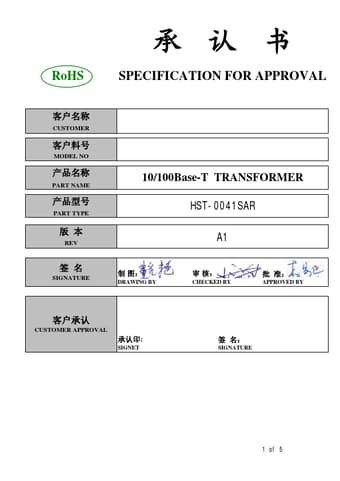

Quotation Release New release Drawing by Checked by Approved by Issued date DGY DGY Jiang Wang Jiang Wang Peter Lee Peter Lee 2008-11-1 2010-12-6 2 of 5 10/100 BASE MODULES 10/100 BASE TRANSFORMER

Features

Designed to meet IEEE 802.3 requirements. Primary inductance(Lp)350uH min. @ 100KHz,0.1Vrms,8mA . Designed for reflow soldering at temperatures up to 260℃. RoHS compliance.
Specifications: at 25 ℃. Part NO Turns Ratio TX HST-0041SAR 1:1 RX 1:1 Insertion Ioss (dB Max) 1-100 -1.1 30 -18 Return Ioss (dB Min) 60 -14 Operating Temperature 0℃ to +70℃ Differential to CommonMode Rejection(dB Min) 80 -12 30 -42 50 -37 100 -33 30 -45 Crosstalk (dB Min) MHz 60 -40 100 -35 1500.
