HST-0041SXAR - 10/100 BASE-TX TRANSFORMER

Product Overview

GROUP-TEK

📥 Download Datasheet

HST-0041SXAR 10/100 BASE-TX TRANSFORMER by GROUP-TEK - Datasheet Preview — Datasheet preview – HST-0041SXAR

Datasheet Details

Part number	HST-0041SXAR
Manufacturer	GROUP-TEK
File Size	142.55 KB
Description	10/100 BASE-TX TRANSFORMER
Datasheet	HST-0041SXAR Datasheet
Note	This datasheet PDF includes multiple part numbers: HST-0041SXAR, HST-0041SAR-GROUP. Please refer to the document for exact specifications by model.

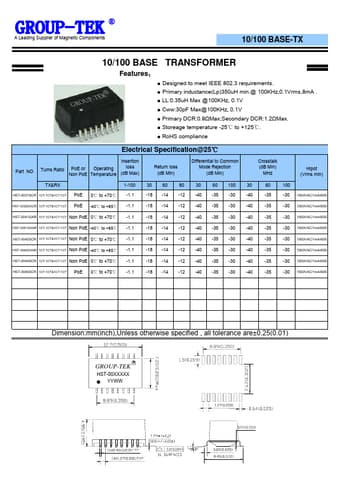

Additional preview pages of the HST-0041SXAR datasheet.

Product details

Features

Designed to meet IEEE 802.3 requirements.
Primary inductance(Lp)350uH min. @ 100KHz,0.1Vrms,8mA.
LL:0.35uH Max @100KHz, 0.1V.
Cww:30pF Max@100KHz, 0.1V.
Primary DCR:0.9ΩMax;Secondary DCR:1.2ΩMax.
Storeage temperature -25℃ to +125℃.
RoHS compliance Electrical Specification@25℃ Part NO Insertion Turns Ratio PoE or Operating Non PoE Temperature Ioss (dB Max) Return Ioss (dB Min) Differential to Common Mode Rejection (dB Min) Crosstalk (dB Min) MHz.
