HST-0042SXAR 10/100 BASE-TX TRANSFORMER

HST-0042SXAR Features

* Designed to meet IEEE 802.3 requirements.

* Primary inductance(Lp)350uH min.@ 100KHz,0.1Vrms,8mA .

* LL:0.35uH Max @100KHz, 0.1V

* Cww:30pF Max@100KHz, 0.1V

* Primary DCR:0.9ΩMax;Secondary DCR:1.2ΩMax.

* Storeage temperature -25℃ to +125℃.

* RoHS compliance Electrical

HST-0041SAR-GROUP-TEK.pdf

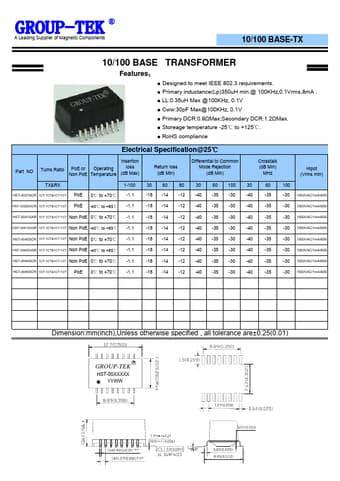

HST-0042SXAR Datasheet Preview — This datasheet PDF includes multiple part numbers: HST-0042SXAR, HST-0041SAR-GROUP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HST-0042SXAR, HST-0041SAR-GROUP

Manufacturer:

GROUP-TEK

File Size:

142.55 KB

Description:

10/100 base-tx transformer.

Note:

This datasheet PDF includes multiple part numbers: HST-0042SXAR, HST-0041SAR-GROUP.
Please refer to the document for exact specifications by model.
