HST-0043S - 10/100BASE TRANSFORMER

Product Overview

GROUP-TEK

Part number	HST-0043S
Manufacturer	GROUP-TEK
File Size	150.43 KB
Description	10/100BASE TRANSFORMER
Datasheet	HST-0043S Datasheet
Note	This datasheet PDF includes multiple part numbers: HST-0043S, HST-0041S-GROUP. Please refer to the document for exact specifications by model.

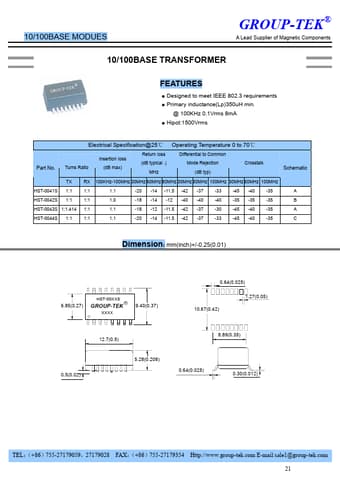

Additional preview pages of the HST-0043S datasheet.

Designed to meet IEEE 802.3 requirements.
Primary inductance(Lp)350uH min. @ 100KHz 0.1Vrms 8mA.
Hipot:1500Vrms Electrical Specification@25℃ Operating Temperature 0 to 70℃ Part No. Turns Ratio Insertion Ioss (dB max) Return Ioss (dB typical . ) MHz Differential to Common Mode Rejection (dB typ) Crosstalk Schematic TX RX 100KHz-100MHz 30MHz 60MHz 80MHz 30MHz 50MHz 100MHz 30MHz 60MHz 100MHz HST-0041S 1:1 1:1 1.1 -20 -14 -11.5 -42 -37 -33 -45 -40 -35 A HST-0042S 1:1 1.
