Part number:
HST-24001SAR
Manufacturer:
GROUP-TEK
File Size:
161.00 KB
Description:
1000 base-tx magnetics modules.

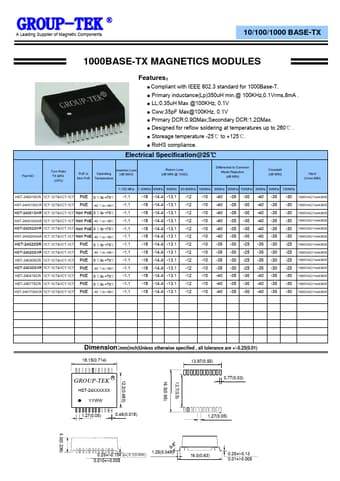

HST-24001SAR Datasheet (161.00 KB)
* Compliant with IEEE 802.3 standard for 1000Base-T.
* Primary inductance(Lp)350uH min.@ 100KHz,0.1Vrms,8mA .
* LL:0.35uH Max @100KHz, 0.1V
* Cww:35pF Max@100KHz, 0.1V
* Primary DCR:0.9ΩMax;Secondary DCR:1.2ΩMax.
* Designed for reflow soldering at temperatures up to 260℃ .
HST-24001SAR Datasheet (161.00 KB)
HST-24001SAR
GROUP-TEK
161.00 KB
1000 base-tx magnetics modules.
