HST-4096SCR, HST-4047SCR-GROUP, 10/100 BASE TRANSFORMER

® A Leading Supplier of Magnetic Components 10/100 BASE-TX 10/100 BASE TRANSFORMER .

HST-4047SCR-GROUP-TEK.pdf

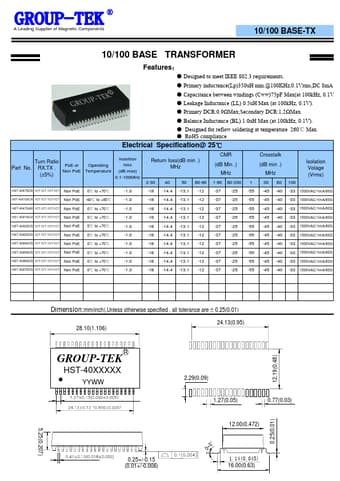

HST-4096SCR Datasheet Preview — This datasheet PDF includes multiple part numbers: HST-4096SCR, HST-4047SCR-GROUP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HST-4096SCR, HST-4047SCR-GROUP

Manufacturer:

GROUP-TEK

File Size:

268.32 KB

Description:

10/100 BASE TRANSFORMER

Note:

This datasheet PDF includes multiple part numbers: HST-4096SCR, HST-4047SCR-GROUP.
Please refer to the document for exact specifications by model.

Features

* Designed to meet IEEE 802.3 requirements.
* Primary inductance(Lp)350uH min. @100KHz,0.1Vrms,DC 8mA
* Capacitance between windings (Cww)75pF Max(at 100kHz, 0.1V
* Leakage Inductance (LL) 0.5uH Max (at 100kHz, 0.1V).
* Primary DCR:0.9ΩMax;Secondary DCR:1.2ΩMax.
* Balance Ind
