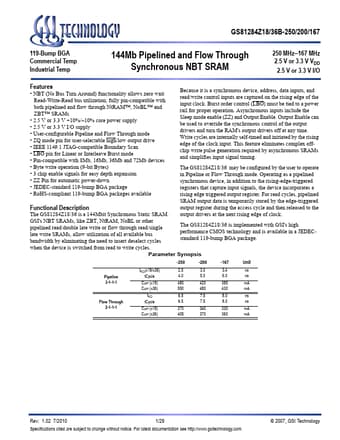

GS81284Z36B, GS81284Z18B - 144Mb Pipelined and Flow Through Synchronous NBT SRAM

GSI Technology

Datasheet Details

Part number	GS81284Z36B, GS81284Z18B
Manufacturer	GSI Technology
File Size	501.43 KB
Description	144Mb Pipelined and Flow Through Synchronous NBT SRAM
Datasheet	GS81284Z18B-GSITechnology.pdf
Note	This datasheet PDF includes multiple part numbers: GS81284Z36B, GS81284Z18B. Please refer to the document for exact specifications by model.

NBT (No Bus Turn Around) functionality allows zero wait Read-Write-Read bus utilization; fully pin-compatible with both pipelined and flow through NtRAM™, NoBL™ and ZBT™ SRAMs.
2.5 V or 3.3 V +10%/.
10% core power supply.
2.5 V or 3.3 V I/O supply.
User-configurable Pipeline and Flow Through mode.
ZQ mode pin for user-selectable high/low output drive.
IEEE 1149.1 JTAG-compatible Boundary Scan.
LBO pin for Linear or Interleave.
